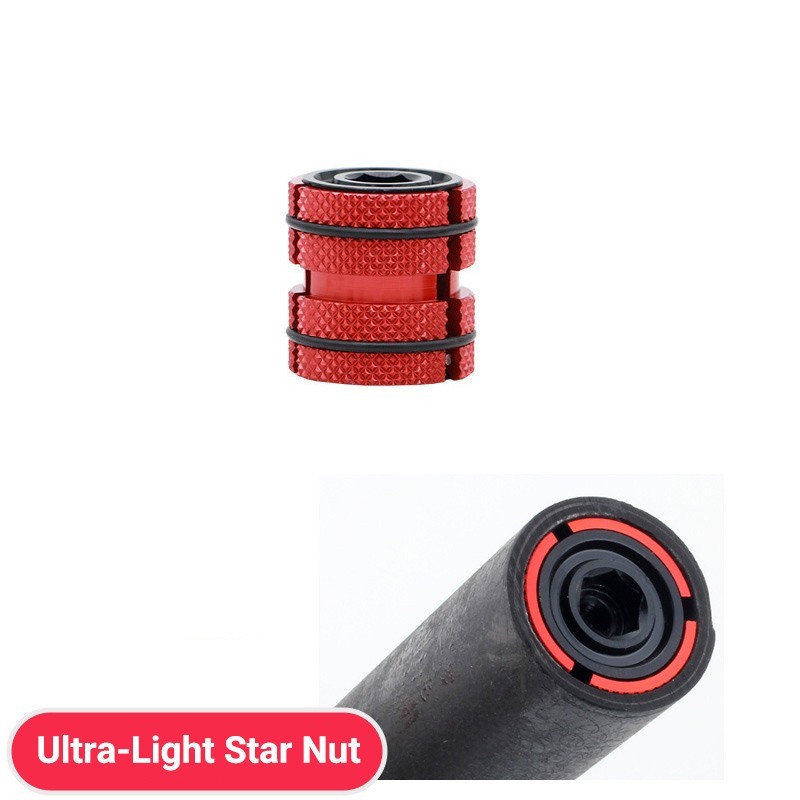

16.5g — Lighter Than Any Steel Star Nut

Precision CNC-machined from 6061 aluminum alloy and hard anodized in red. The diamond-knurled body provides a tactile reference during installation, while the dual O-ring system grips the inner wall of the steerer tube evenly — distributing clamping force across the full contact area rather than concentrating it at a single point. Safe for carbon and aluminum forks alike.

Carbon Fork Safe

The O-ring expansion system distributes load evenly across the steerer tube wall — no scoring, no stress concentration. Tested for carbon fiber steerer compatibility. Reusable and fully removable at any time.

28.6mm Steerer · 8mm Allen · 10N·m

Designed exclusively for 28.6mm (1-1/8") threadless steerers — the universal standard on modern road, gravel, and MTB forks. Three-piece assembly: the black top bolt, the CNC aluminum expansion body with dual O-rings, and the locking base nut. Tighten with a common 8mm hex/Allen key to 10N·m or greater. Expansion range 23–25.5mm covers virtually all 28.6mm fork inner diameters.

No More Free-Spinning Nut

Conventional expansion nuts allow the nut body to spin freely with the bolt, making it difficult to judge actual clamping torque. The Aoeagle anti-spin pin engages with the body to hold it stationary — you feel exactly when the O-rings are gripping the steerer wall, and you apply precise torque without fighting the spinning nut.

Why This Matters on Carbon

Over-torquing is one of the leading causes of carbon steerer damage. The anti-spin pin gives you tactile confirmation of engagement before you reach damaging torque levels — a small detail that protects a very expensive fork.

Body height 23.5mm · Expansion range 23–25.5mm · Compatible with 28.6mm (1-1/8") threadless steerer tubes on carbon and aluminum forks.

For Carbon Fiber Forks

Recommended for carbon steerers — the O-ring expansion prevents the nut from being driven down by a hammer, eliminating the risk of cracking the inner tube wall. Install by hand, tighten with an 8mm Allen key.

What the Star Nut Does

Works together with the headset top cap to compress the headset bearings, eliminate play in the steering assembly, secure the top cap, and improve weather sealing against water ingress.
