WHEELTOP EDS TXF Wireless Electronic Groupset | Folding Bike | 1x7-14 Speed | Max 32T Cassette
Buy Now on eBay WHEELTOP EDS TXF
A fully wireless electronic shifting kit engineered specifically for folding bikes and compact flat-bar builds. The EDS TXF pairs the proven TX electronic rear derailleur — fitted with a 58mm short cage for tight frame clearances — with the same button-style wireless shifter used in the OX MTB groupset. No cables, no housing, no barrel adjusters. 1X single chainring configuration only. Compatible with 7–14 speed cassettes (max 32T large sprocket), fully configurable through the WHEELTOP app via BLE/ANT+.

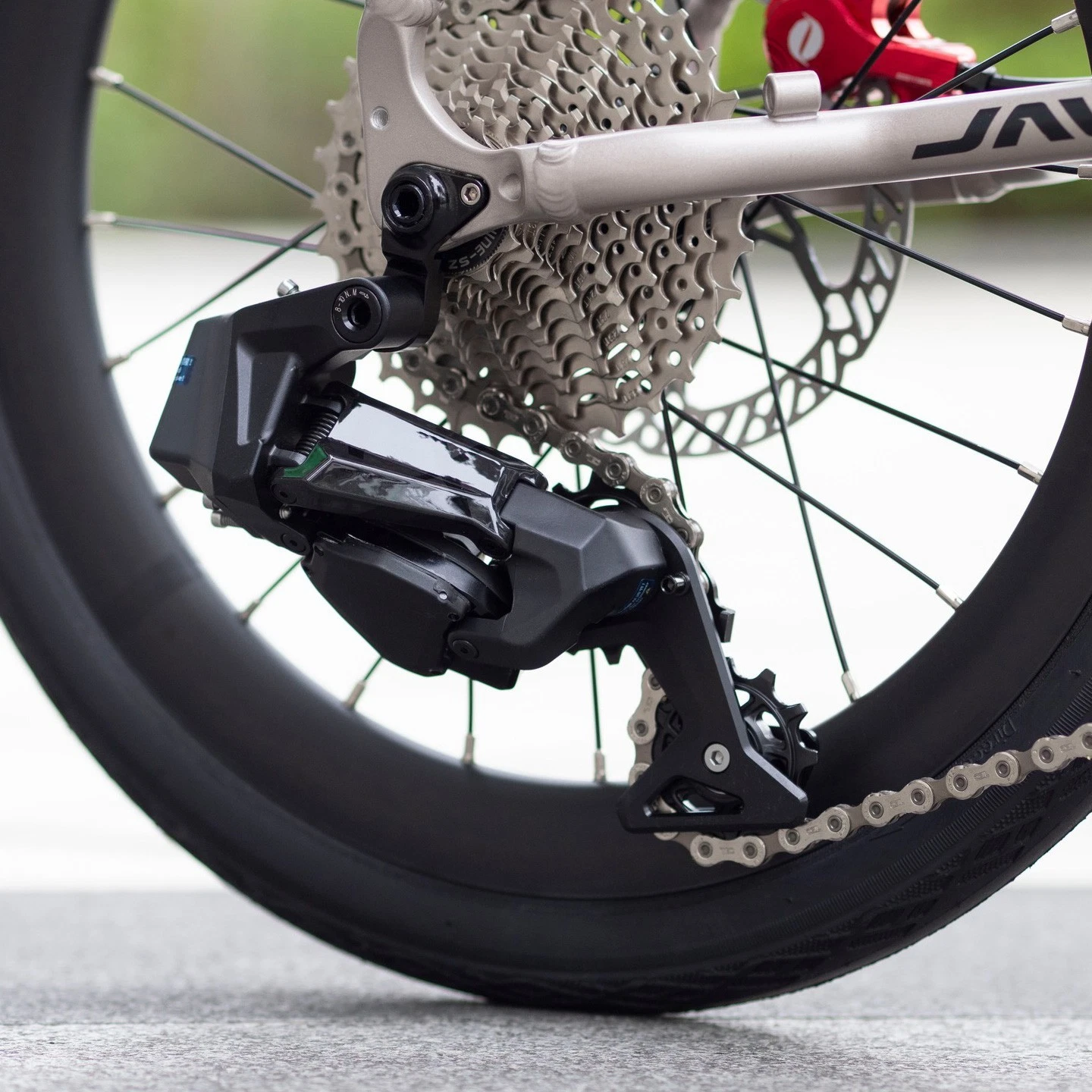

TX Electronic Rear Derailleur — 58mm Short Cage
EDS TX Electronic Rear Derailleur — 58mm Short Cage
The same TX electronic platform — 800mAh built-in battery, instant wireless actuation, Pogopin magnetic charging — now fitted with a 58mm short cage purpose-built for folding bikes. The shorter cage sits tighter to the frame, clears compact folding bike geometries, and handles the smaller cassette ranges typical of single-chainring folding bike drivetrains. Aluminum alloy construction keeps weight minimal at 339.8g. Shift speed is set through the WHEELTOP app across any 7–14 speed, 10–32T cassette.
58mm Short Cage — Built for Folding Bikes
Standard long-cage derailleurs often conflict with folding bike frame geometry and pedal-strike clearance requirements. The 58mm short cage sits higher and tighter, making the TXF a direct fit for Dahon, Java, and other compact folding platforms without compromising shift performance.
Cage Length
58mm Short
Designed for folding bike clearance
Battery
800mAh / 8.4V
Built-in, up to 24,000 shifts
Weight
339.8g
Aluminum alloy body
Max Cassette
10–32T
7–14 speed, max large sprocket 32T
Button-Style Wireless Shifter
The same button-style wireless shifter used in the OX MTB groupset. Clean, minimal, and satisfyingly tactile — mechanical-keyboard-style click on every press. Mounts on flat bars without cables or housing. IP67-rated against dust and water, powered by a long-lasting CR2032 coin cell that drops in without tools. Shift up or down, and the derailleur responds instantly.
Feel
Mechanical Click
Crisp, tactile feedback on every press
Response
Zero Lag
Instant actuation, no cable pull
Weather
IP67 Sealed
Rain-proof, wash-proof
Battery
CR2032 Coin Cell
Tool-free replacement, total weight 66.9g

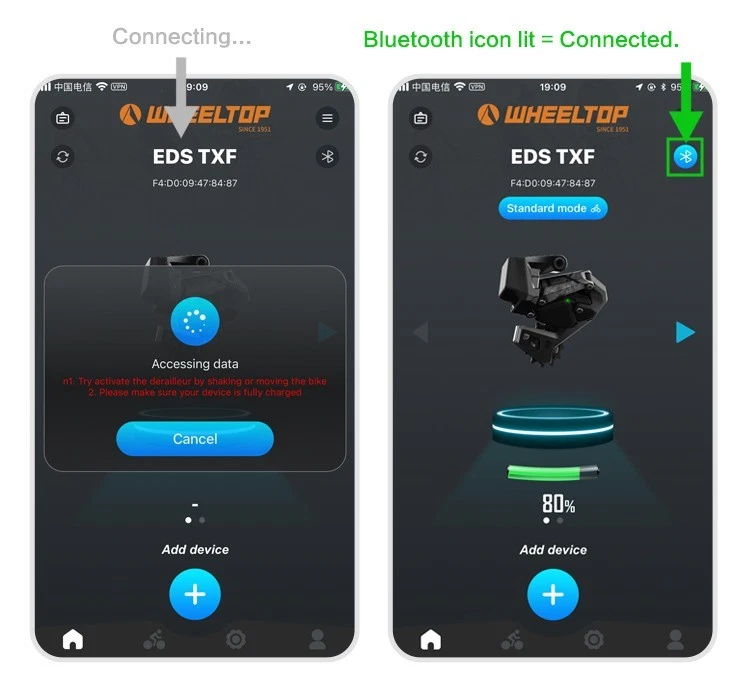

Full Control from Your Phone
Download the WHEELTOP app to pair, tune, and monitor your drivetrain — all from your phone.
Everything You Need, Right in the App
Install the WHEELTOP app on iOS or Android. Connect over Bluetooth, and you have instant access to gear position, battery level, riding data, firmware updates, and full after-sales support — all in one place.
Live Riding Data
Speed, cadence, heart rate, mileage, and ride time displayed in real time
Battery & Shift Count
See remaining charge and total shift cycles at a glance
OTA Firmware Updates
Push updates wirelessly — no cables or tools needed
Two Riding Modes. One Tap to Switch.
Switch between Standard and Racing mode directly in the app. Each mode is tuned for a different riding style — no tools, no hassle.
Standard Mode
Auto-sleep when idle. Lower power draw, longer battery life. Perfect for long days in the saddle.
Racing Mode
Always-on, maximum responsiveness. Boosted signal power for noise-resistant shifting under pressure.
Pair, Calibrate, Fine-Tune — All in the App
Use the WHEELTOP app to pair your derailleur, run initial position calibration, and micro-adjust each individual gear. No limit screws to guess at — just tap and confirm.
Per-Gear Fine Adjustment
Dial in every sprocket individually. If one gear feels off, adjust it directly in the app without touching the bike — a level of precision that cable systems simply can't match.
TXF vs OX — Lighter for Folding Bikes
Every gram matters on a folding bike. The TXF rear derailleur is 57.7g lighter than the OX — a meaningful difference on a platform built around portability.
EDS OX Rear Derailleur
397.5g
MTB / Flat-bar
EDS TXF Rear Derailleur
339.8g
Folding Bike Optimized ✓

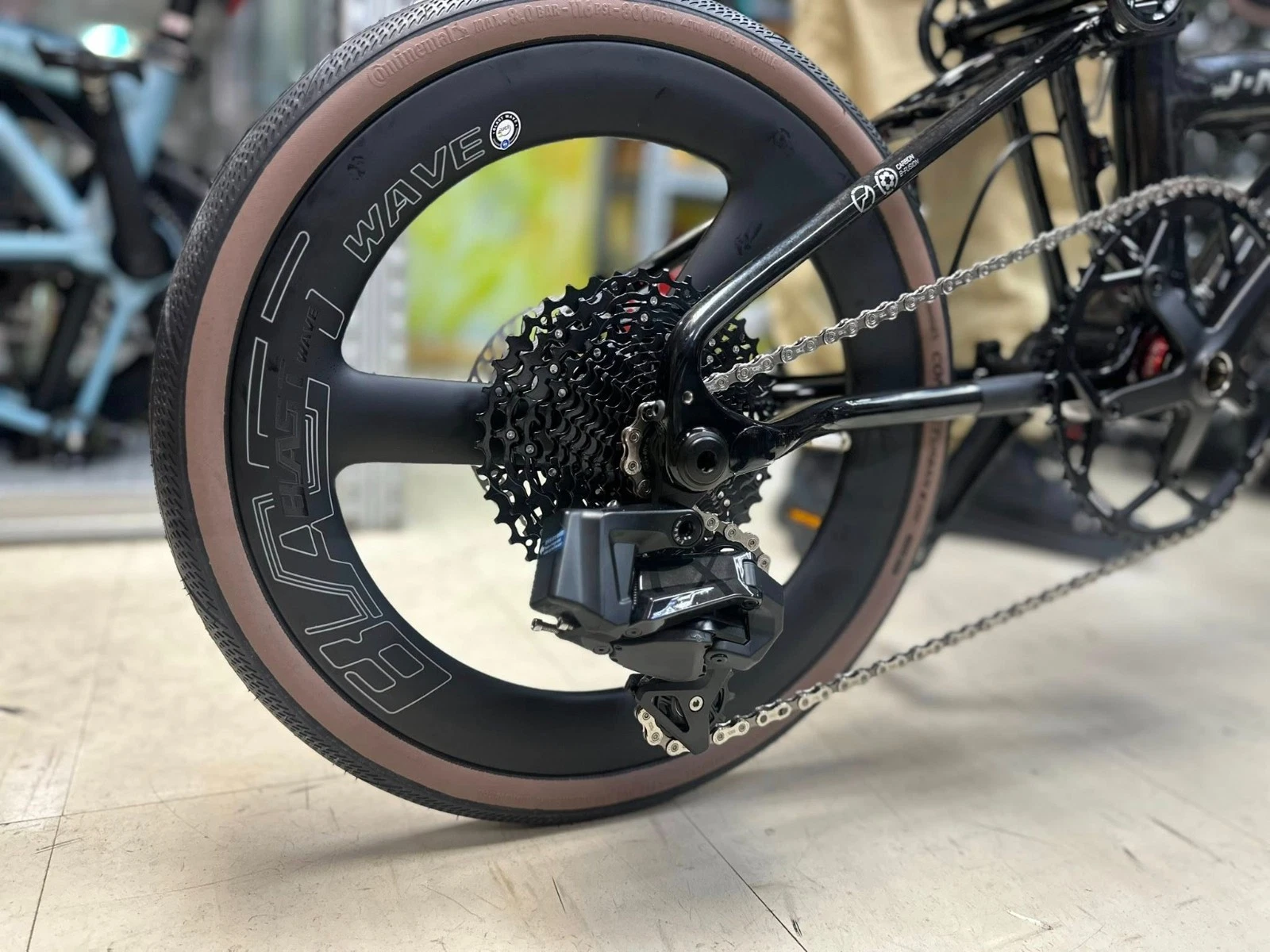

Short Cage. Clean Install. No Cables.
The TXF is built around one insight: folding bikes need an electronic groupset that actually fits.
58mm Cage Clears Compact Frames
Fits folding bikes where standard or long-cage derailleurs conflict with the folded geometry or chainstay clearance.
Zero Cable Routing
No shift cable to thread through a folding frame. No housing. No barrel adjusters to re-tune after folding and unfolding hundreds of times.
1X Single Chainring — Simpler Drivetrain
Single chainring means no front derailleur, no chainline management headaches. Just rear shifts — fast, precise, every time.
Button Shifter on Flat Bars
The OX-derived button shifter mounts cleanly to flat bars with a single bolt. No levers, no bracket arms — minimal footprint, maximum clearance.
EDS TXF Spec Sheet
What's in the Box
×1
EDS TX Electronic Rear Derailleur (58mm Short Cage)
×1
Wireless Button-Style Shifter
×1
Magnetic Charging Cable
Why Choose Aoeagle
More than just a groupset — every order comes with the Aoeagle difference.
Free Wooden Box Upgrade
360° protection during international transit, preventing crush damage. Doubles as a handy tool storage box after unboxing.
Pre-Shipment Quality Check
Every unit is re-inspected, paired, and tested before it leaves our warehouse — no defects, no glitches, ready to install straight out of the box.
1-Year Warranty + Lifetime Support
Full official WHEELTOP warranty plus free lifetime technical support — backed by an authorized WHEELTOP partner with years of hands-on experience.
✓ Authorized WHEELTOP Partner — Genuine products, full warranty included. Items from unauthorized channels may not be covered.
Compatibility & Buyer Notes
Please review the following before purchasing to ensure correct fitment.
1X Single Chainring Only
The TXF kit does not include a front derailleur and is not designed for 2X double-chainring setups. For 2X, see the TXR listing.
Flat Bar / Button Shifter Mount
The included button-style shifter is designed for flat bars. It is not compatible with drop bar STI-style lever positions.
Requires Standard Derailleur Hanger
Compatible with standard replaceable derailleur hangers. Confirm your folding bike uses a standard hanger before ordering.
WHEELTOP App Required for Setup
Speed count and per-gear positions are configured through the free WHEELTOP app (iOS & Android). Initial pairing takes under 5 minutes.
