WHEELTOP EDS TT Wireless Electronic Groupset Triathlon & Time Trial Bike Shiftin


Wireless Electronic Groupset · Triathlon & Time Trial

WHEELTOP EDS TT

A fully wireless electronic groupset purpose-built for triathlon and time trial bikes. Shift from the aerobar tips without breaking position — bar-end shifters at the end of your aerobars, plus two additional shift buttons on the base bar brake levers, give you six programmable buttons across both cockpit positions. The rear derailleur runs carbon fiber hollow oversized pulleys for reduced drivetrain friction. Hydraulic disc brakes, IP67 sealing, BLE/ANT+ connectivity, and full WHEELTOP app control round out the system.

Aerobar Control

SW-TT7110 Bar-End Shifters — Shift Without Breaking Aero

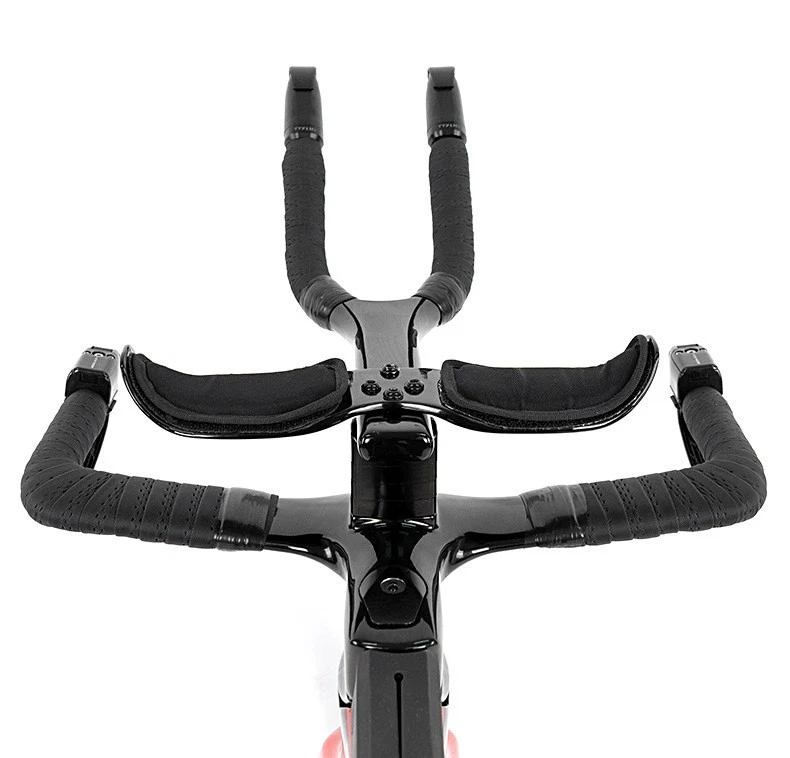

Wheeltop SW-TT7110 bar-end aerobar shifters

Four Buttons. Zero Compromise to Aero Position.

The SW-TT7110 mounts at the tip of each aerobar extension. Four angled, thumb-reach shift buttons let you shift front and rear derailleurs without lifting your torso, moving your elbows, or changing position in any way. The serrated shark-fin profile is sculpted from biomimetic aerodynamic principles — form and function engineered together to cut through the air rather than fight it.

Four Programmable Buttons

All four buttons on the SW-TT7110 are programmable via the WHEELTOP app — assign front shift up/down, rear shift up/down, or custom functions. The system's flexibility expands what a shifter can do beyond just gear changes.

Clamp Diameter

Φ19.5±0.5mm

Standard aerobar tip fitting

Buttons

4 per pair

All programmable via app

Material

Composite + Aluminum

Lightweight, durable body

Weight

70±3g / each

Compatible: EDS-TX ALL

Base Bar Control

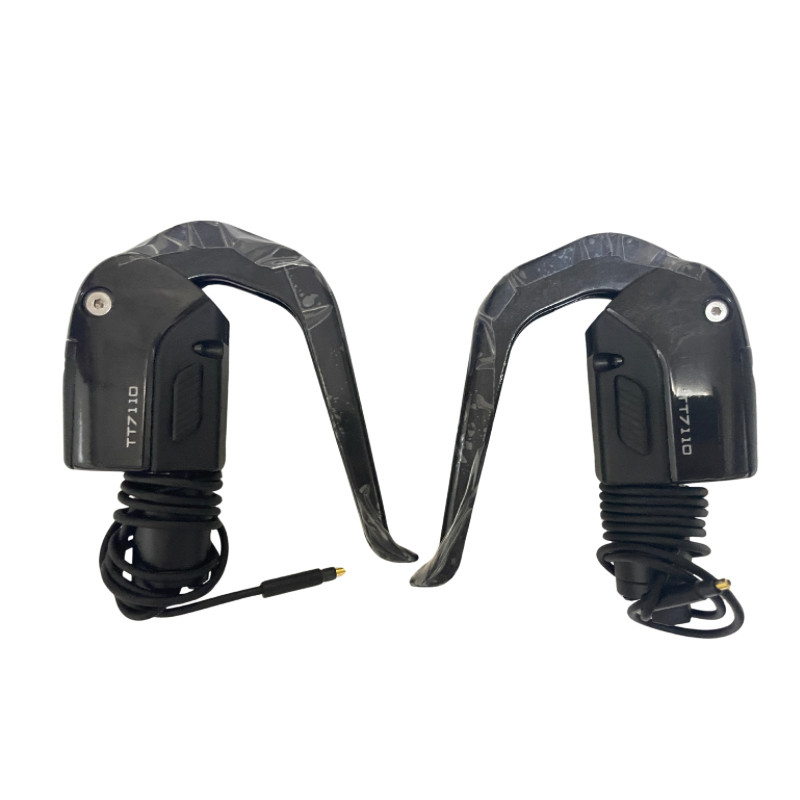

BL-TT7110 Base Bar Brake Levers — Shift from the Hoods Too

Two additional shift buttons on the base bar levers complete the six-button cockpit — full gear control in both riding positions.

Brake and Shift from the Base Bar

The BL-TT7110 levers clamp to your base bar and combine hydraulic braking with two integrated shift buttons — so when you sit up in transition, sprint through a finish, or handle technical corners, you always have shifting right at your fingers. Left and right levers are interchangeable so you can configure your cockpit exactly as you prefer. Reach is adjustable from 70mm to 100mm to suit any hand size. The carbon fiber and aluminum construction keeps weight low without sacrificing brake lever rigidity.

Left / Right Interchangeable

Both levers share the same design and can be swapped sides — configure your brake and shift assignments freely without being locked to a fixed left/right layout.

Clamp Diameter

Φ21±0.5mm

Standard base bar fitting

Reach Adjust

70–100mm

Wide range for all hand sizes

Material

Carbon Fiber + Aluminum

Rigid, lightweight lever body

Weight

165±3g / each

Shifter battery: CR2032

Wheeltop BL-TT7110 base bar brake lever with shift buttons
Rear Drivetrain

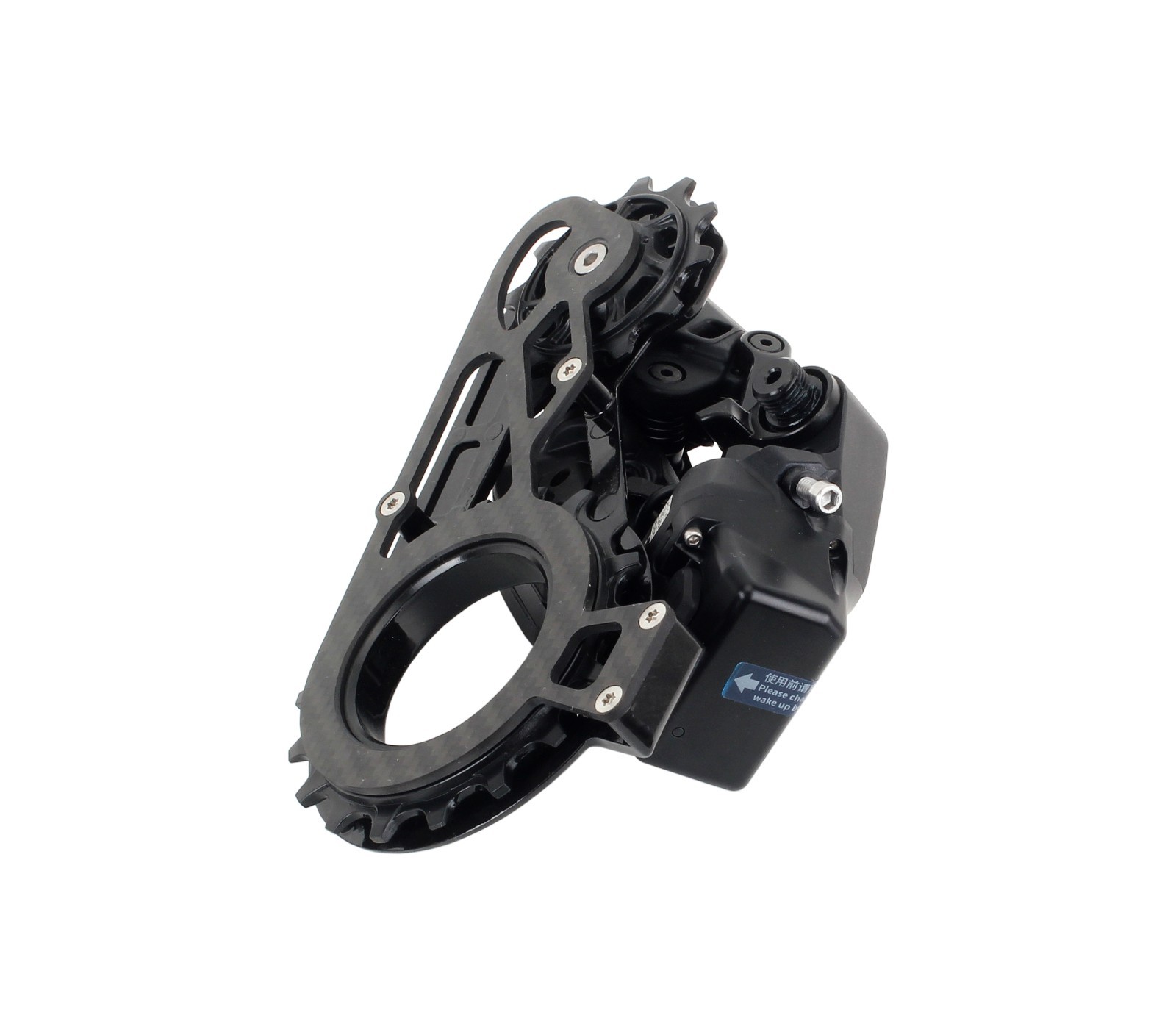

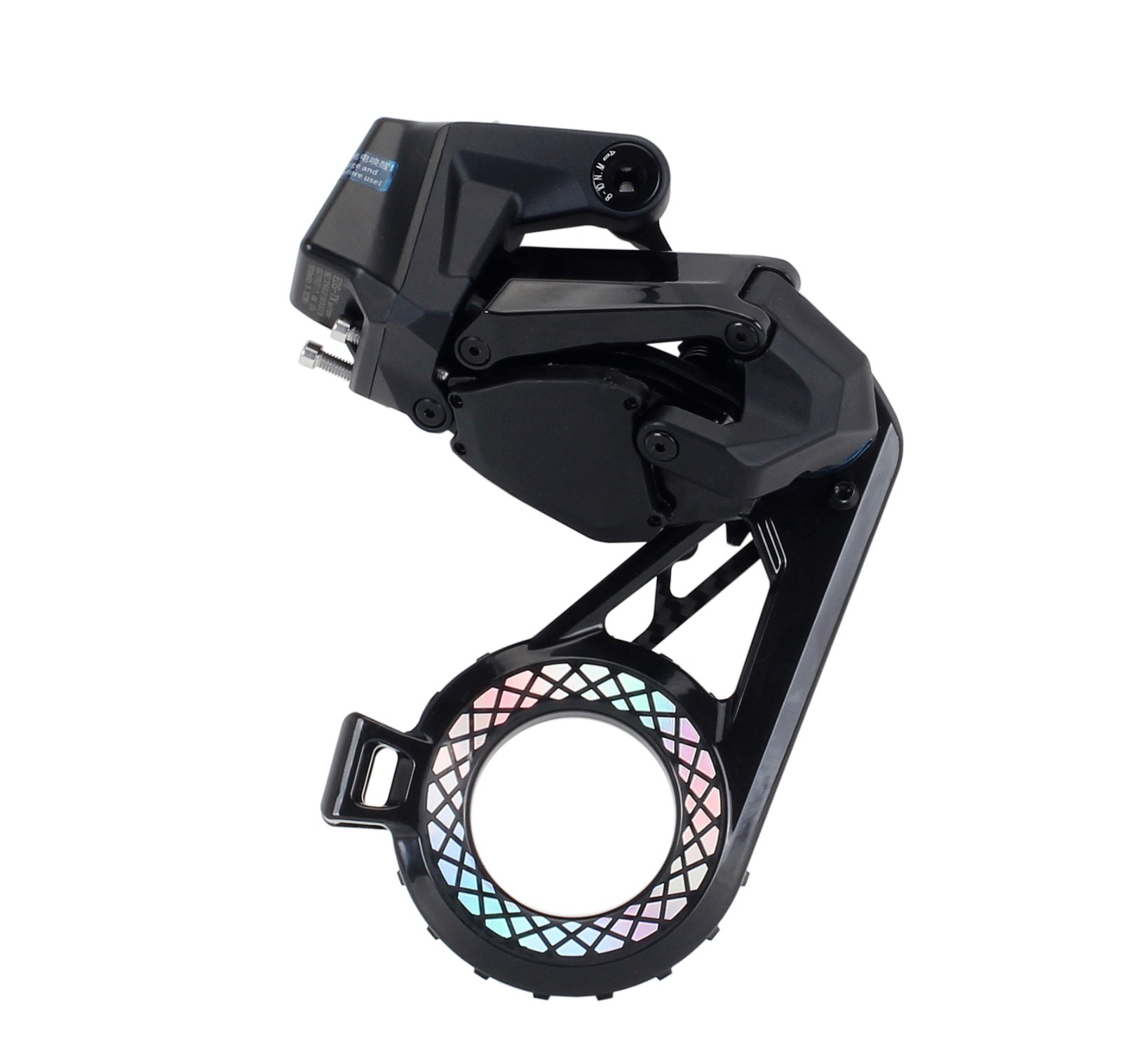

Electronic Rear Derailleur — Carbon Fiber Oversized Pulley Cage Upgraded

The EDS TT rear derailleur runs the same 800mAh electronic platform as the TX, upgraded with carbon fiber hollow oversized pulley wheels for lower drivetrain friction and higher power transfer efficiency.

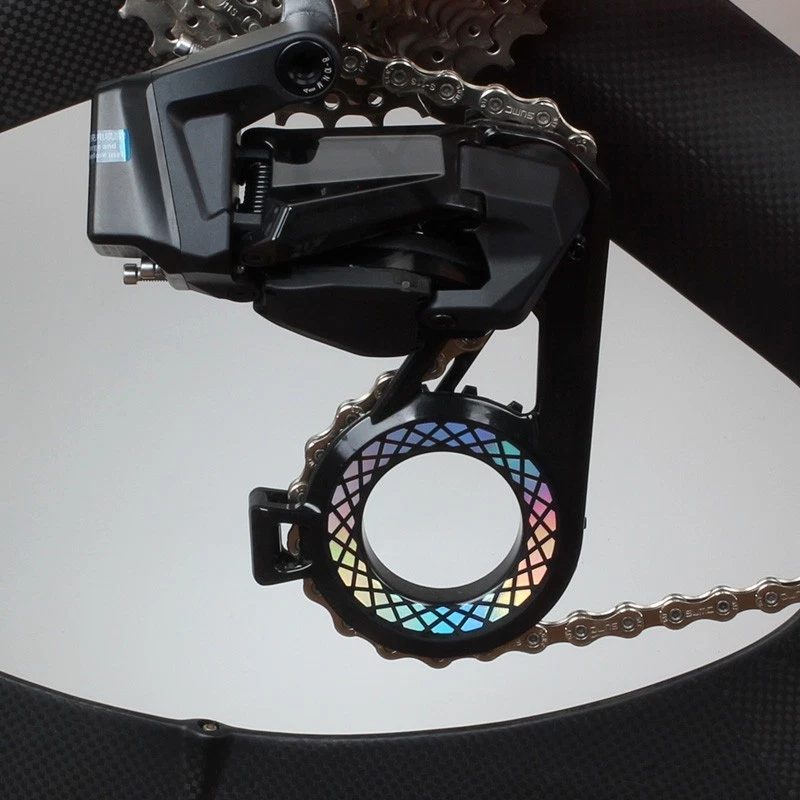

Wheeltop EDS TT rear derailleur with carbon fiber oversized pulley wheels

Carbon Fiber Hollow Oversized Pulley Cage

Oversized pulley wheel systems reduce the chain's wrap angle around each pulley, which means less chain articulation per revolution and measurably lower friction across the full drivetrain. The TT rear derailleur upgrades to carbon fiber hollow oversized pulleys — lighter than standard, stiffer under load, and noticeably smoother under hard pedaling effort. On a TT bike where every watt counts, this is exactly where gains matter most.

Dual-Input Shifting

The rear derailleur accepts shift commands simultaneously from both the aerobar bar-end shifters and the base bar brake levers — you can shift from either position with no lag, no priority conflict, and no reconfiguration required.

RD Battery

800mAh

20,000+ shifts per charge

Pulley Wheels

Carbon Fiber Oversized Pulley Cage

Hollow, oversized, low-friction

Max Sprocket

30–36T

3-14 speed compatible

Weather

IP67

1m submersion · 30 min

Front Drivetrain

Electronic Front Derailleur

Wireless electronic actuation for the chainring shift — same dual-input capability as the rear derailleur.

Front Shift on a Button Press

The EDS TT front derailleur runs its own built-in 500mAh rechargeable battery via Pogopin magnetic charging, and shares the same BLE/ANT+ wireless system as every other component in the kit. Compatible with 53T chainrings standard on TT and triathlon bikes. Like the rear, it accepts commands from both cockpit positions simultaneously — aerobar tips or base bar, whichever you reach for first.

FD Battery

500mAh

Built-in rechargeable lithium

Chainring

Up to 53T

TT-standard compatibility

Charging

Pogopin Magnetic

Red = charging, green = full

Weight

191±5g

IP67 sealed

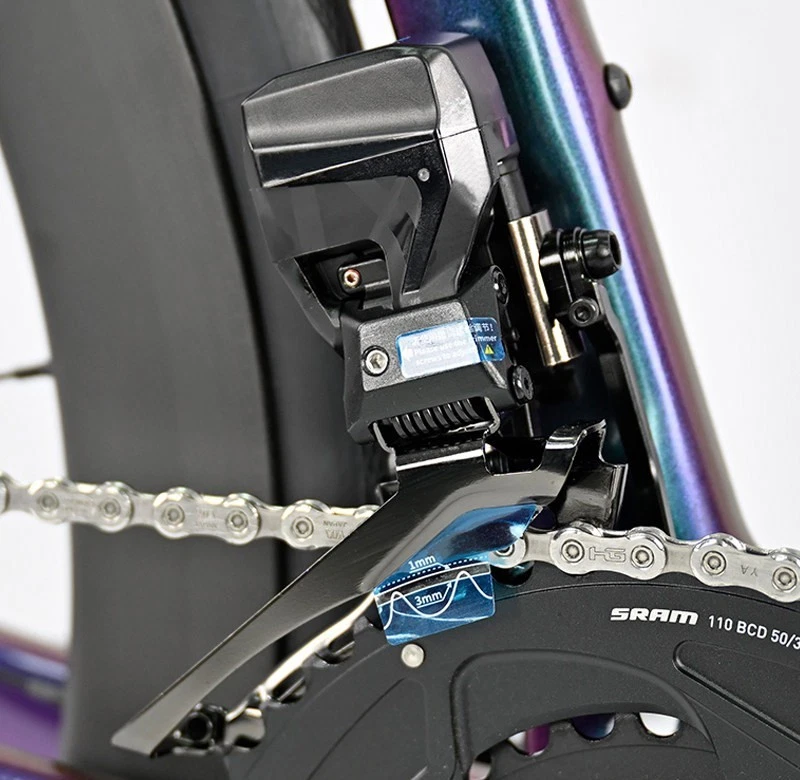

Wheeltop EDS TT wireless electronic front derailleur
Braking System

Hydraulic Disc Brake Calipers — Full Ceramic Pistons

Included with the EDS TT kit — front 135g, rear 170g.

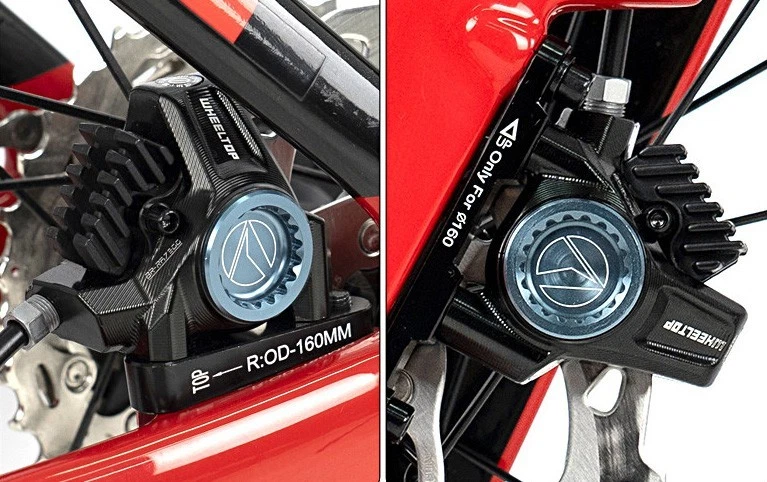

Wheeltop EDS TT hydraulic disc brake caliper — CNC unibody, ceramic pistons

CNC Unibody. Shark-Fin Heat Sinks. Ceramic Pistons.

CNC-machined from a single aluminum alloy block for maximum rigidity. Shark-fin heat sinks increase surface area and dissipate heat faster to delay thermal fade on long descents. Full ceramic pistons resist high heat and maintain consistent bite point through sustained braking. A unidirectional oil circuit prevents fluid backflow and sharpens brake response speed.

Pistons

Full Ceramic

Heat-resistant, consistent feel

Oil Circuit

Unidirectional

Prevents backflow, faster response

Fluid

Mineral Oil

Shimano brake fluid compatible

Compatibility

BR-RA7000 · RA7800

RA7801-BK / BL · RA7900

Smart Control

Full Control from Your Phone

Download the WHEELTOP app to pair, tune, and monitor your drivetrain - all from your handlebars.

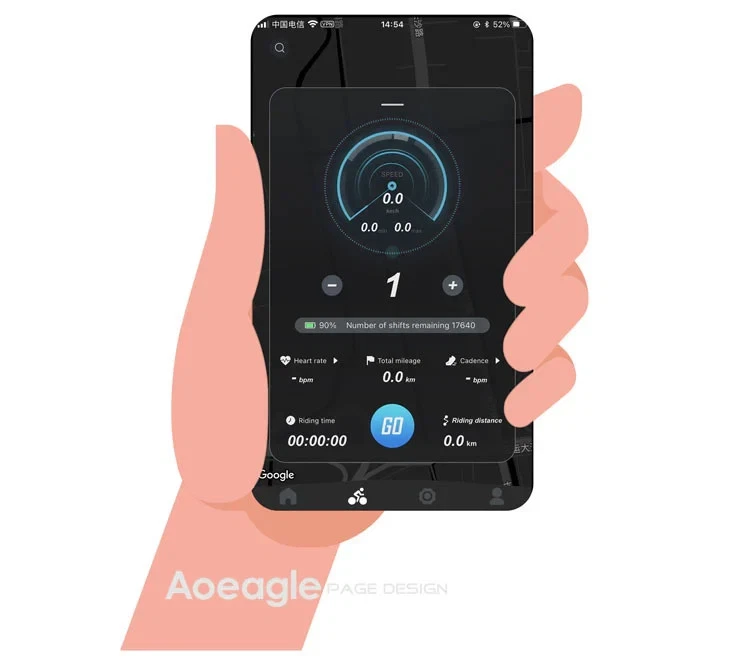

WHEELTOP app main screen

Everything You Need, Right in the App

Install the WHEELTOP app on iOS or Android. Connect over Bluetooth, and you have instant access to gear position, battery level, riding data, firmware updates, and full after-sales support - all in one place.

Live Riding Data

Speed, cadence, heart rate, mileage, and ride time displayed in real time

Battery & Shift Count

See remaining charge and total shift cycles at a glance

OTA Firmware Updates

Push updates wirelessly - performance improvements without cables or tools

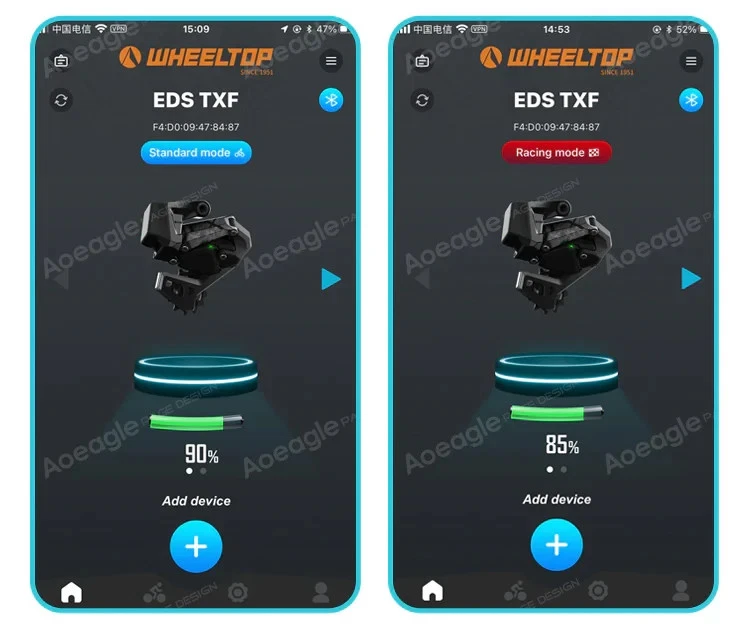

WHEELTOP app Standard and Racing Mode

Two Riding Modes. One Tap to Switch.

Switch between Standard and Racing mode directly in the app. Each mode is tuned for a different riding style - no tools, no hassle.

Standard Mode

Auto-sleep when idle. Lower power draw, longer battery life. Perfect for long days in the saddle.

Racing Mode

Always-on, maximum responsiveness. Boosted signal power for noise-resistant shifting under pressure.

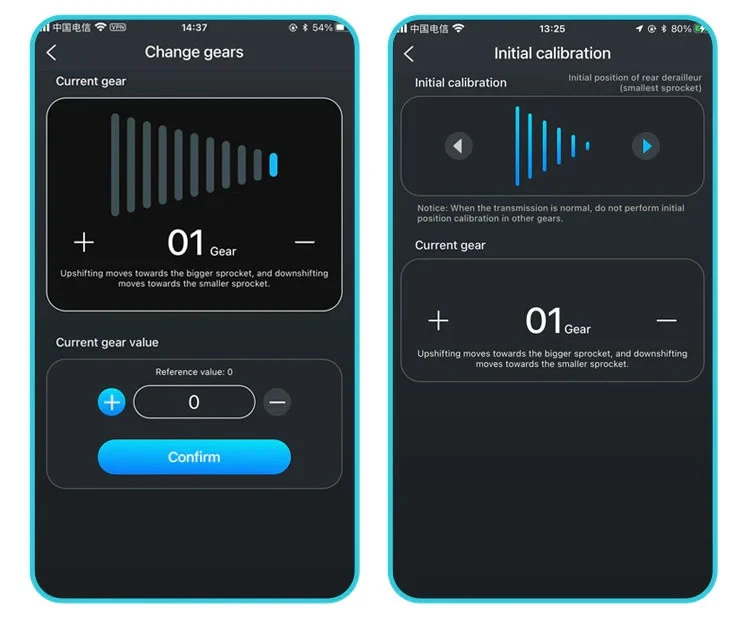

WHEELTOP app calibration screen

Pair, Calibrate, Fine-Tune - All in the App

Use the WHEELTOP app to pair your derailleur, run initial position calibration, and micro-adjust each individual gear. No limit screws to guess at - just tap and confirm.

Per-Gear Fine Adjustment

Dial in every sprocket individually. If one gear feels off, adjust it directly in the app without touching the bike - a precision that cable systems simply can't match.

Wireless Electronic Triathlon / Time Trial Bar-End Aerobar Shifters 6 Programmable Buttons Carbon Fiber Oversized Pulley Cage Dual-Input Shifting IP67 All Components 800mAh RD · 500mAh FD Pogopin Magnetic Charging Full Ceramic Pistons Mineral Oil · Shimano Compatible BLE + ANT+ Standard & Race Mode Left / Right Interchangeable Levers 2-Year Warranty
6
Programmable buttons
IP67
Dust-tight · 1m submersion
20,000+
Shifts per RD charge
Technical Details

Specifications

Full technical breakdown of the EDS TT wireless electronic groupset.

Brand
WHEELTOP
Model
EDS TT Wireless Electronic Groupset — Triathlon / Time Trial
Suitable For
Triathlon bikes, time trial (TT) bikes
Speed Range
3-14 Speed
SW-TT7110 Shifters
Clamp Φ19.5±0.5mm · 4 programmable buttons · Composite + aluminum · 70±3g/each · EDS-TX ALL compatible
BL-TT7110 Levers
Clamp Φ21±0.5mm · 2 shift buttons · Left/right interchangeable · Reach 70-100mm · Carbon fiber + aluminum · 165±3g/each
RD Battery
800mAh · ~20,000 shifts per charge · Pogopin magnetic charging
RD Pulley Wheels
carbon fiber hollow oversized pulley wheels · Reduced friction · Improved chain engagement
RD Max Sprocket
30-36T
RD Weight
336±5g
FD Battery
500mAh · Pogopin magnetic charging
FD Chainring
Up to 53T · 191±5g
Wireless Protocol
BLE / ANT+ — pairs with Garmin, Wahoo, and compatible cycling computers
Protection Rating
IP67 — dust-tight, 1m submersion up to 30 minutes
Brake Caliper
Hydraulic disc · CNC unibody aluminum · Full ceramic pistons · Shark-fin heat sinks · Unidirectional oil circuit · Mineral oil (Shimano compatible) · Front 135g · Rear 170g
Riding Modes
Standard Mode / Racing Mode (switchable via WHEELTOP app)
Warranty
2-Year Official WHEELTOP Warranty
Package Contents

What's in the Box

×1 pair

SW-TT7110 Bar-End Aerobar Shifters (L+R)

×1 pair

BL-TT7110 Base Bar Brake Levers with Shift Buttons (L+R)

×1

EDS TX Electronic Rear Derailleur — Carbon Fiber Oversized Pulley Cage

×1

EDS TX Electronic Front Derailleur

×2

Hydraulic Disc Brake Calipers (Front + Rear)

×2

Pogopin Magnetic Charging Cables (RD + FD)

×1

Spare Parts Kit + User Manual

Before You Order

Compatibility & Buyer Notes

Please review the following before purchasing to ensure correct fitment.

TT / Triathlon Bikes Only

Designed specifically for TT and triathlon bikes with aerobar extensions. The SW-TT7110 mounts at the aerobar tip (Φ19.5mm); the BL-TT7110 mounts on the base bar (Φ21mm). Not intended for drop-bar road bikes — use EDS TX for those.

Verify Aerobar Tip & Base Bar Diameters

SW-TT7110 requires aerobar inner diameter of Φ19.5±0.5mm. BL-TT7110 requires base bar diameter of Φ21±0.5mm. Confirm your cockpit dimensions before ordering.

Confirm Cassette & Caliper Mount Type

Rear derailleur supports max sprocket 30-36T across 3-14 speed cassettes. Confirm your cassette falls within this range. Also confirm your frame and fork's disc brake caliper mount type and rotor size before ordering.

App Pairing Required Before First Ride

After installation, pair all components to the WHEELTOP app over BLE, assign button functions, and run gear calibration. The app is free on iOS and Android.

Our Service Promise

Why Choose Aoeagle

More than just a groupset — every order comes with the Aoeagle difference.

Aoeagle WHEELTOP 2025 Rising Star Award

Authorized WHEELTOP Partner

As an official WHEELTOP authorized partner and 2025 Rising Star Award recipient, every product is 100% genuine, sourced directly from the factory. 1-year official warranty, hassle-free aftercare included.

Pre-shipment inspection and pairing

Pre-Shipment Quality Check

Before every unit leaves our warehouse, our team thoroughly inspects, pairs, and tests each device to confirm it's working perfectly — no defects, no glitches, no quality issues. Your groupset arrives ready to install.

Aoeagle expert WHEELTOP installation and support

Expert Tech Support

Unlike most sellers, our team knows every WHEELTOP model inside out — years of hands-on installation and tuning. App pairing, shifting calibration, any question — just reach out.

Thank you for visiting our listing. If you have any questions before purchasing, please send us a message through eBay and we'll respond within 24 hours.

What cassette speeds and chain brands are compatible with the WHEELTOP EDS-TT?

The WHEELTOP EDS-TT works with 11-speed cassettes from Shimano, SRAM, and other standard road brands, and is compatible with all standard chain types including Shimano, SRAM, and KMC chains. The carbon fiber OSPW cage is specifically engineered for 11-speed drivetrains common on triathlon and time trial bikes, ensuring precise shifting across your entire cassette.

How difficult is it to install the WHEELTOP EDS-TT, and what tools do I need?

Installation is straightforward for experienced mechanics and typically takes 30-45 minutes, requiring only basic tools like hex keys, screwdrivers, and a chain tool—no cable routing needed since the WHEELTOP EDS-TT eliminates shift cables entirely. You'll need to remove your existing derailleur and replace it with the electronic unit, then calibrate via the WHEELTOP app before your first ride.

How long does the battery last, and how do I charge the WHEELTOP EDS-TT?

The WHEELTOP EDS battery delivers approximately **24,000 shifts per charge** (~60+ hours of typical riding). Battery level is monitored in real-time via the WHEELTOP Bluetooth app. Charging uses the proprietary **magnetic charging cable** (not USB-C) — attach it to the magnetic port on the derailleur and a full charge takes about 2 hours. The EDS OX2.0 also features a **user-replaceable battery** (remove 4 screws with a 2mm hex key to swap).

How do I pair and calibrate the WHEELTOP EDS-TT with my bike and race head unit?

Download the WHEELTOP app on iOS or Android, follow the Bluetooth Low Energy (BLE) pairing process, and run the automatic calibration routine which takes under 2 minutes and ensures perfect indexing across all 11 gears. The WHEELTOP EDS-TT also supports ANT+ connectivity for direct integration with Garmin, Wahoo, and other popular race computers, and firmware updates are pushed automatically through the app.

How does the WHEELTOP EDS-TT compare in price and features to Shimano Di2 or SRAM AXS?

At ~$759, the WHEELTOP EDS-TT undercuts both Shimano Di2 (~$1,200+) and SRAM AXS (~$1,100+) while delivering 4 fully programmable buttons instead of limited shifter options, plus a hollow oversized carbon fiber pulley cage that reduces weight and improves aerodynamics for triathlon-specific performance. You get zero cables through your frame like premium groupsets, but at a significantly lower price point without compromising on ANT+ and BLE connectivity for race integration.

Is the WHEELTOP EDS-TT waterproof, and will it hold up in rain and wet conditions?

The WHEELTOP EDS-TT features sealed electronics and weatherproof connectors rated for triathlon conditions including rain, spray, and pool water exposure, making it suitable for both open-water swimming transitions and wet-weather training. The carbon fiber OSPW cage is corrosion-resistant and the derailleur's compact sealed design protects internal components, though we recommend rinsing with fresh water after saltwater exposure to maximize component longevity.

Where can I buy the WHEELTOP EDS-TT, and what warranty coverage is included?

The WHEELTOP EDS-TT is available exclusively through Aoeagle's eBay store with worldwide shipping and a full manufacturer's warranty covering defects and electronic components. Visit [Aoeagle on eBay](https://www.ebay.com/usr/aoeagle) today to order your WHEELTOP EDS-TT and take your triathlon performance to the next level with wireless electronic shifting.
