WHEELTOP EDS TX 2x12 rim brake groupset bundle, standard carbon cage, all parts

WHEELTOP EDS TX Wireless Electronic 2x12s Groupset Full Kit Road Bike Rim Brake

Crankset
Cassette
Derailleur Cage
$639.00
In Stock

Questions before you buy? Email us · We reply within 6 hours.

1-Year Warranty Official Wheeltop warranty included. Lifetime technical support from our team.
Authorized Partner Authorized WHEELTOP Partner: 100% Genuine & Factory Backed.
Buying for your bike shop? Explore small-batch wholesale and request a quote.
Description

WHEELTOP EDS TX Rim Brake — Full Groupset Bundle

Everything you need to build a complete electronic drivetrain in one box — no separate crankset order, no cross-referencing a chain compatibility chart, no mismatched brake calipers. This bundle pairs the WHEELTOP EDS TX wireless electronic shifting kit (carbon fiber rim brake levers, front + rear derailleur) with an EVOSID SL1 DUB double chainring crankset, a 12-speed SUNSHINE-SZ cassette, a SUMC S12L 12-speed chain, and a pair of MEROCA BR-R7000 dual-pivot brake calipers. Pick your chainring ratio and cassette range below, and the rest of the drivetrain is matched and ready to install.

Before you order, please check

Brake type

This is the rim brake version. Please make sure it matches your bike's brakes.

Front derailleur

Braze-on mount. If your frame has no braze-on tab, a clamp-on adapter can be used on a round seat tube. We can supply one, just message us.

WHEELTOP EDS TX complete groupset bundle, all parts

Every Part, One Box

Shift Levers (Left + Right)
Rear Derailleur
Front Derailleur
Cassette
Chain
Bottom Bracket
Crankset
Brake Calipers

A Verified Combination, Not Just Parts in a Box

This isn't a random parts bundle — Aoeagle built this exact combination onto a complete bike and put it through rigorous testing to confirm smooth, precise shifting between these components and the WHEELTOP EDS TX before offering it as a set.

Electronic Rear Derailleur — 12-Speed

EDS TX rear derailleur

EDS TX Electronic Rear Derailleur

Driven by a built-in 800mAh rechargeable battery at 8.4V, the EDS TX rear derailleur shifts instantly on a button press — zero cable lag, zero stretch over time. Speed count is set entirely through the WHEELTOP app, so it's ready to match the 12-speed cassette included in this bundle. The standard pulley wheel uses a 12-tooth positive/negative tooth profile for quieter, more secure chain engagement. Charges through a magnetic Pogopin connector — snap it on, no port covers, no corrosion.

Pre-Matched to This Bundle's 12-Speed Cassette

Set the EDS TX to 12-speed in the WHEELTOP app after pairing, and it's dialed in for the SUNSHINE-SZ cassette included in this bundle.

Oversized Pulley Cage Upgrade — Lower Friction, Higher Efficiency

The EDS TX Oversized Pulley Cage variant upgrades the rear derailleur with carbon fiber hollow oversized pulley wheels — available on this bundle as an upgrade option.

EDS TX oversized pulley wheel groupset

Carbon Fiber Hollow Oversized Pulley Cage

Oversized pulley wheel systems reduce the chain's wrap angle around each pulley, which means less chain articulation per revolution and measurably lower friction across the full drivetrain. The EDS TX Oversized Pulley Cage rear derailleur runs the same 800mAh electronic platform as the standard TX, upgraded with carbon fiber hollow oversized pulley wheels — lighter than standard, stiffer under load, and noticeably smoother under hard pedaling effort.

Same Platform. Carbon Fiber Upgraded Pulleys.

The TX Oversized Pulley Cage shares the same 800mAh battery, Pogopin charging, BLE/ANT+ wireless, and app configuration as the standard TX rear derailleur. The performance gain comes entirely from the carbon fiber hollow oversized pulley wheel system — no learning curve, no setup difference.

EDS TX carbon fiber hollow oversized pulley close-up

Why Oversized? The Chain Wrap Angle Difference.

At 12 teeth, the oversized pulleys are physically larger than a conventional jockey wheel — letting the chain bend through a gentler arc at each engagement. Less arc per revolution means less per-link articulation friction across every pedal stroke. The hollow carbon fiber construction removes mass from the pulley body without sacrificing torsional stiffness, keeping the drivetrain quieter and more responsive under load.

Pulley Size

12T Oversized

Weight vs Standard

Lighter

Chain Arc

Gentler per Rev

Drivetrain Feel

Quieter · Smoother

Electronic Front Derailleur — Complete 2× Groupset

Every build ships with both the front derailleur and rear derailleur, matched to the EVOSID double chainring crankset below — a complete 2× drivetrain, ready to install.

EDS TX front derailleur

Precise Front Shifting on Demand

The EDS TX front derailleur runs on its own built-in 600mAh rechargeable battery and shares the same 8.4V system, magnetic Pogopin charging, and BLE/ANT+ wireless link as the rear unit. Pair both derailleurs to the WHEELTOP app for synchronized setup, gear mapping, and live status — front and rear shift in concert with a single button press from the lever.

FD Battery

600mAh / 8.4V

Built-in rechargeable lithium

Charging

Pogopin Magnetic

Red = charging, green = full

Wireless

BLE / ANT+

Pairs with cycling computers

Weight

191.3g

Included with every build

Rim Brake — Carbon Fiber Lever

The EDS TX Rim Brake build pairs a carbon fiber lever body with the MEROCA calipers included in this bundle — electronic shifting precision, zero cable clutter.

EDS TX rim brake carbon fiber build

Standard Bundle

Rim Brake — Carbon Fiber

Carbon fiber lever body, standard 12T pulley rear derailleur. 2X configuration — front and rear derailleur both included. The lightest of the two builds.

Chainring setup2X (double chainring)
Front derailleur191.3g (included)
Rear derailleur336.6g
Left lever202.3g
Right lever214.6g

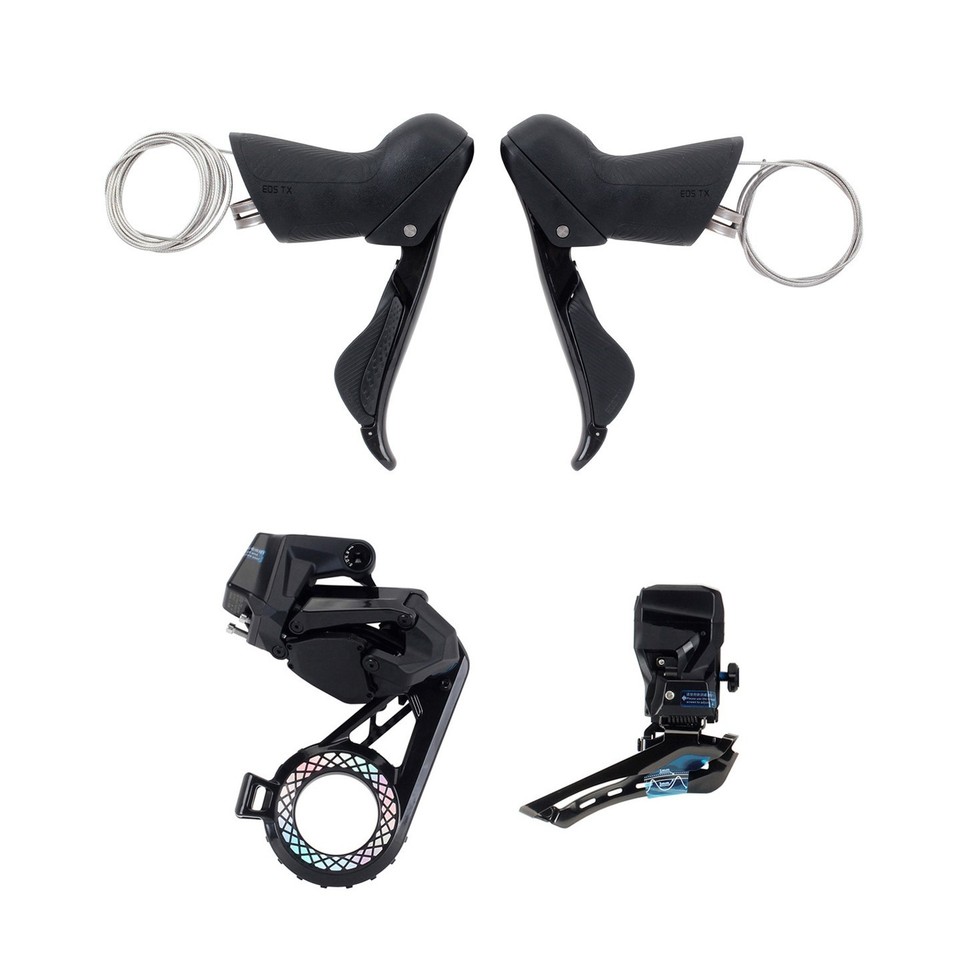

EDS TX rim brake oversized pulley cage build

Bundle + Upgrade

Rim Brake + Oversized Pulley Cage

Same carbon fiber rim brake lever, upgraded rear derailleur with carbon fiber hollow oversized pulley wheels. Same 2X configuration, same lever, measurably lower chain friction.

Chainring setup2X (double chainring)
Pulley materialCarbon Fiber Hollow
Left lever202.3g
Right lever214.6g
Base platformSame 800mAh TX RD
EDS TX rim brake carbon fiber shift lever on road bike drop bar

Carbon Fiber Body. Rim Brake Compatible.

The carbon fiber lever body is lightweight, rigid, and built to actuate the MEROCA calipers included in this bundle through a standard rim brake cable. Shift electronically on a button press while braking through the lever in the same motion you already know. No hydraulic lines to bleed — just cleaner cockpit routing and instant gear response.

Lightest EDS TX Configuration

Without hydraulic calipers, the Rim Brake build is the lightest complete EDS TX kit — front derailleur 191.3g, rear derailleur 336.6g, left lever 202.3g, right lever 214.6g.

EVOSID SL1 DUB Crankset — Forged Alloy Arms

Forged EVOSID SL1 crank arms on a DUB spindle, with a threaded bottom bracket included.

EVOSID SL1 DUB crankset

Forged Alloy Arms on a DUB Spindle

The EVOSID SL1 crank arms are forged aluminum alloy, CNC-machined into a one-piece structure for high stiffness and crack resistance under hard pedaling. They run on a SRAM DUB-standard 28.99mm spindle.

Crank Length

170mm

165mm available on request

Spindle

DUB, 28.99mm

Q-Factor

146mm

Bottom Bracket Shell

68-73mm (threaded, BB included)

Need 165mm Crank Arms?

170mm ships as standard. If you'd prefer 165mm, just leave a note with your order at checkout or send us a message, and we'll ship 165mm crank arms instead.

EVOSID SL1 left and right crank arms

Forged and CNC-Machined, Not Just Machined from Stock

Starting from a forged aluminum alloy blank rather than machining from bar stock gives the crank arm a stronger internal grain structure — the factory quotes roughly 15% lower weight and 20% higher stiffness on this crankset. The crank arms weigh 660g at 170mm or 609g at 165mm.

EVOSID BC1.37x24T threaded bottom bracket, 68-73mm shell, 90mm overall width

Threaded Bottom Bracket, Cups Included

The crankset ships with its matching EVOSID BC1.37"×24T (BSA/English threaded) bottom bracket. Overall width is 90mm and it accepts bottom bracket shells from 68mm up to 73mm wide, with included spacers (two 2.6mm gaskets, a 3mm spacer, and a 4.5mm spacer) to take up the difference. Threading directly into a standard threaded shell also avoids the creaking that press-fit bottom brackets are known for.

Is Your Frame Compatible?

As long as your frame's bottom bracket shell is BSA (English thread) between 68mm and 73mm wide, this bottom bracket installs without any issue. It is not a press-fit design.

EVOSID ES1204 Road Double Chainring

A one-piece double chainring that direct-mounts to the SL1 crank arms, matched to the EDS TX front derailleur above.

EVOSID ES1204 one-piece road double chainring close-up

ES1204: One Piece of CNC 7075 Aluminum

Both rings are CNC-machined from a single piece of 7075 aerospace-grade aluminum and finished in sand-blasted anodized black. The one-piece construction stays rigid without the extra hardware of two separately bolted rings — the complete chainring weighs just 169g (50-34T) or 170g (52-36T).

Shift Ramps for Fast Upshifts

Dedicated tooth profiles and chain-guide ramps on the big ring catch the chain cleanly as it climbs from the small ring, for quick, predictable front shifts. Tooth tips are also width-optimized to reduce chain and ring wear.

Compact

50-34T

The easier-spinning ratio — noticeably more manageable on long climbs and rolling terrain. The natural pick for most road and gravel riders, and for anyone pairing with the wider 11-32T or 11-34T cassette options below.

Mid-Compact

52-36T

A taller top end for faster group rides and flatter routes, while the 36T inner ring still leaves a manageable gear for moderate climbs. Best suited to stronger riders or those on rolling-to-flat terrain.

SUNSHINE-SZ 12-Speed Cassette — Three Range Options

Precision-cut 12-speed cogs on a standard Shimano HG-compatible driver — pick the range that matches your terrain and set the EDS TX to 12-speed in the WHEELTOP app to match.

This Cassette Uses Shimano HG Freehub Bodies

SRAM XD freehub body
SRAM XD
Shimano HG freehub body
SHIMANO HG

HG Driver Only — Not XD/XDR Compatible

This cassette installs on a standard Shimano HG-splined freehub body. It does not fit a SRAM XD or XDR driver. Confirm your rear hub's freehub body before ordering.

SUNSHINE-SZ 12-speed cassette

Each cog is precision-machined for clean, quiet engagement, and the whole cassette is a straightforward drop-in for a standard Shimano HG freehub body — the same driver used for 11-speed cassettes, no special driver needed. Because the EDS TX sets its speed count entirely in the app rather than through a fixed cable-pull ratio, it indexes cleanly against whichever range you choose below.

Close Ratio

11-28T

11-12-13-14-15-16-17-19-21-23-25-28T · 306g

Tight steps between gears for flat-to-rolling roads where you want to hold a precise cadence. Pairs naturally with the 52-36T chainring.

All-Rounder

11-32T

11-12-13-14-15-17-19-21-23-25-28-32T · 367g

The middle-ground range — enough spread for mixed terrain and moderate climbs without giving up too much at the close end. A safe default for most riders.

Wide Range

11-34T

11-12-13-15-17-19-21-23-25-28-31-34T · 388g

A genuine bail-out gear for hillier routes or riders who'd rather spin than grind. Pairs well with the 50-34T chainring for a climb-friendly setup.

SUMC S12L Semi-Hollow Chain — 12-Speed

Speed-matched to the cassette above, and the chain we run on the oversized pulley cage for clean, quiet engagement.

SUMC S12L 12-speed chain in retail pack, gold and silver

Semi-Hollow Plates. Gold & Silver Finish.

The SUMC S12L is a dedicated 12-speed chain with semi-hollow plates in a gold and silver finish, compatible with Shimano, SRAM and Campagnolo 12-speed drivetrains. A quick link is included. Supplied at 126 links — trim to fit your frame during installation.

Speed

12-Speed

Matched to the included cassette

Links

126

Trim to length on install

Weight

263.6g

Approx. net weight

Pitch

1/2"

Inner width 11/128"

MEROCA BR-R7000 Dual-Pivot Brake Calipers — Front & Rear

A matched pair of dual-pivot calipers, sized to work with the carbon fiber rim brake levers included in this bundle — one less part to source separately.

MEROCA BR-R7000 dual-pivot brake calipers

Aluminum Alloy Body. Dual-Pivot Balance.

The BR-R7000 caliper body is aluminum alloy, lightweight with high rigidity — the arm doesn't flex or deform under hard braking, so lever force translates directly into stopping power. A dual-pivot balanced structure keeps both brake arms applying force in sync, transmitting braking power evenly with no fishtailing under a hard stop and no fade on long descents.

High-Rebound Return Spring

A high-rebound spring keeps lever response and return fast for a direct, controlled feel — fine-tune brake force to reduce lock-up and rim-rub risk on technical descents.

MEROCA BR-R7000 adjustable brake pad detail

Adjustable Pads. Anti-Squeal Compound.

Each brake pad is adjustable — 47mm of range at the top, 70mm at the bottom — for precise alignment to the rim's braking surface and easy compensation as the pads wear. The pad compound itself is a low-noise, wear-resistant formula with a widened mud/sand channel, cutting down on the high-frequency resonance that causes brake squeal.

Front Caliper

200g

27mm mounting bolt

Rear Caliper

194g

13mm mounting bolt

Arm Dimensions

76mm height

68mm arm width

Application

Aluminum Rims

Standard road C-brake mount

Full Control from Your Phone

Download the WHEELTOP app to pair, tune, and monitor your drivetrain - all from your handlebars.

WHEELTOP app searching for and selecting the EDS TX device
WHEELTOP app connecting and showing all four components with battery levels

Step 1

Pair Your Components

Open the WHEELTOP app and tap + Start Using. It searches for nearby EDS TX components over Bluetooth, showing a Searching for devices screen. Once your derailleur turns up, select it and name it yourself, then tap Finish — the app connects automatically, showing an Accessing data… prompt while it pairs — just keep the derailleur powered on and within range. When it's done, the screen switches to Connected, and the home screen lists all four components — rear derailleur, front derailleur, and both shift levers — each showing its live battery reading, with the rear and front derailleur cards also listing firmware version and MAC address.

All Four Components, One Screen

The Connected view puts the rear derailleur, front derailleur, and both shift levers on one screen, so you can check every component's charge level at a glance before a ride.

WHEELTOP app flywheel settings screen

Step 2

Set Your Cassette Speed

Tap the settings icon in the bottom corner, then open Flywheel Settings and select your cassette's brand and speed so the derailleur knows exactly how many gears to index across.

Not Locked to One Speed Count

Unlike a mechanical derailleur built for one fixed speed, EDS TX is fully configurable — set whatever speed count you're running, directly in the app.

WHEELTOP app initial calibration screen

Step 3

Run Initial Calibration

Shift the rear derailleur onto the smallest cog and the front derailleur onto the largest chainring, then start calibration in the app.

Guided On-Screen Alignment

No guesswork — use the on-screen +R / −L controls to nudge the guide pulley until it sits precisely under the smallest sprocket, then tap Finish.

WHEELTOP app gear fine-tuning screen

Step 4

Fine-Tune Every Gear

If you notice any chain rub when shifting between chainrings, dial in each gear individually on the Fine-Tuning screen.

Need to Go Further?

Open Rear Derailleur Gear Parameters to view or manually edit the exact position value for any gear, then save — a level of precision cable systems simply can't match.

Other Settings

WHEELTOP app shift button customization screen

Customize Your Shift Buttons

Assign what each button on the left and right shift levers does — no two riders shift the same way.

Set It Once, Ride Your Way

Reassign the SW-L and SW-R paddles to trigger whichever shift function feels natural, or tap Factory Restore to reset instantly.

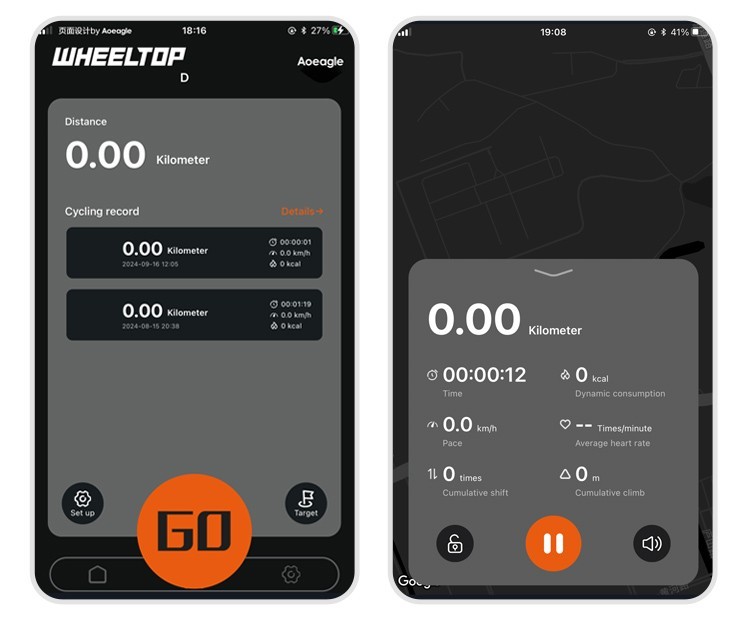

WHEELTOP app home screen and ride computer

Ride Data and Turn-by-Turn Navigation

Switch to the ride screen for distance tracking and a full history of past rides — each entry logged with duration, average speed, and calories burned.

Live Stats While You Ride

Tap GO in the bottom bar to switch into the ride screen, where elapsed time, calories, pace, average heart rate, cumulative shifts, and climb update in real time alongside turn-by-turn map navigation.

WHEELTOP app firmware update screen

One-Tap Firmware Updates

When a new firmware version is available, the app flags it right on the home screen for the affected component.

Stay Current, Wirelessly

Tap to review what's new, then update over the air — just make sure the component has enough charge before you start.

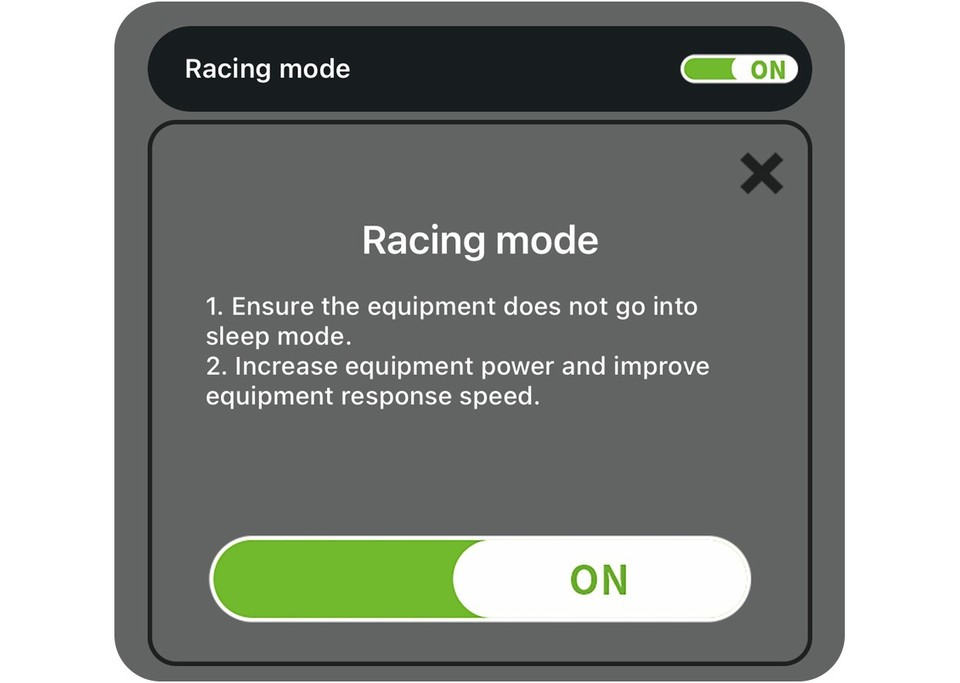

Two Riding Modes. One Tap to Switch.

WHEELTOP app Standard and Racing mode switch screen

Switch between Standard and Racing mode directly in the app. Each mode is tuned for a different riding style — no tools, no hassle.

Standard Mode

Auto-sleep when idle. Lower power draw, longer battery life. Perfect for long days in the saddle.

Racing Mode

Always-on, maximum responsiveness. Boosted signal power for noise-resistant shifting under pressure.

9
Core drivetrain parts, one box
12-Speed
Cassette, chain & shifting matched
20,000+
Shifts per RD charge
BLE+ANT+
Dual-protocol wireless

Specifications

Full technical breakdown of every part included in this bundle.

Brand
WHEELTOP (shifting) · EVOSID (crankset) · SUNSHINE-SZ (cassette) · SUMC (chain) · MEROCA (calipers)
Model
EDS TX Rim Brake Wireless Groupset Bundle
Suitable For
Road bikes and drop-bar bicycles with a threaded BSA (68-73mm) bottom bracket shell and front derailleur mount
Speed
12-Speed (set in the WHEELTOP app to match the included cassette)
Cassette
SUNSHINE-SZ 12-Speed (Shimano HG driver) — 11-28T (306g) · 11-32T (367g) · 11-34T (388g)
Chain
SUMC S12L, 12-speed, semi-hollow, 126 links, approx. 263.6g, quick link included
Crankset
EVOSID SL1, forged & CNC-machined crank arm, 170mm (165mm on request), DUB 28.99mm spindle · EVOSID ES1204 one-piece 7075 double chainring, 50-34T or 52-36T · EVOSID BC1.37"×24T threaded BB (68-73mm) included
Brake Calipers
MEROCA BR-R7000, aluminum alloy dual-pivot, front 200g / rear 194g, adjustable pads (47mm/70mm range)
Rear Derailleur Pulley
Standard: 12-tooth positive/negative tooth profile · Optional: carbon fiber hollow oversized pulley wheels
Wireless Protocol
BLE / ANT+ — pairs with cycling computers, displays current gear position and battery level
Charging Port
Pogopin magnetic connector · Red light = charging, green light = charge complete
Battery Capacity
Rear derailleur 800mAh · Front derailleur 600mAh · System voltage 8.4V
Shifter Battery
CR2032 button cell (tool-free replacement)
Weight — Shifting Kit
Front derailleur 191.3g · Rear derailleur 336.6g · Left lever 202.3g · Right lever 214.6g
Warranty
WHEELTOP Official 1-Year Quality Warranty (electronic shifting components)

What's in the Box

This bundle includes the full parts list below. The Oversized Pulley Cage build includes carbon fiber hollow oversized pulley wheels instead of the standard 12T pulleys.

×1

EDS TX Electronic Rear Derailleur

×1

EDS TX Electronic Front Derailleur

×2

Integrated Rim Brake Shift Levers — Carbon Fiber (Left + Right)

×1

EVOSID SL1 DUB Crankset (ES1204 double chainring, choice of 50-34T or 52-36T)

×1

EVOSID Threaded Bottom Bracket (with spacers)

×1

SUNSHINE-SZ 12-Speed Cassette (choice of range)

×1

SUMC S12L 12-Speed Chain (126 links, quick link included)

×2

MEROCA BR-R7000 Dual-Pivot Brake Calipers (Front + Rear)

Included

Carbon Fiber Hollow Oversized Pulley Cage (Oversized Pulley Cage build only)

×1

Pogopin Magnetic Charging Cable

×2

CR2032 Button Batteries (pre-installed in shifters)

×1

Quick-Start Guide (scan QR code for installation video & instructions)

Quality Check & Return Inspection

Every order is checked, photographed, filmed and weighed before it ships, and every return is checked against those records.

Inspected and Tested Before Dispatch

Every groupset is brand new, and each one is inspected, paired and tested before it leaves us. That's why it reaches you new, fully working and free of marks, ready to fit.

Photographed, Filmed and Weighed

Each order is photographed and filmed when packed, and the parcel weight is recorded at dispatch.

Gift Box and Wooden Box

Ships in a printed "HELLO!" gift box with a zip tear strip. Inside, the electronics and calipers are bubble-wrapped and sealed in white frosted bags; the electronics go in a wooden box: a free upgrade for 360° protection against crush damage in transit.

Returns Checked on Arrival

Every return is photographed and filmed when it's opened, and compared with our dispatch photos and video. It must be the item we sent, complete. Please return it in the original wooden box. Missing or different items are handled under eBay's returns policy.

Having trouble with setup? Message us first. Most issues are fixed in a few minutes.

Check Your Derailleur Hanger

Please complete these two checks before fitting the WHEELTOP rear derailleur. Only install it once both are confirmed.

Check 1

Is the Hanger Straight?

Bent derailleur hanger compared with a straight hanger

A bent hanger tilts the rear derailleur, which causes poor shifting, chain noise and difficult calibration, no matter how carefully it is set up.

How to check: look from behind the bike. The hanger should hang straight down, parallel to the cassette cogs. If it is bent, straighten it with a hanger alignment tool or fit a new hanger.

Check 2

Does the Hanger Have a Step?

Derailleur hanger with a clear step: compatible
Compatible

Clear step at the bottom

Derailleur hanger with a very small step: not compatible
Not compatible

Very small step

The small tab next to the mounting bolt must rest on the step at the bottom of the hanger, so the derailleur can swing forward and back.

Small step? Fit a hanger with a larger step, or a derailleur hanger extender. Otherwise the derailleur stays rigid and cannot be set up.

Not sure? Send us a close-up photo of your hanger through eBay messages before ordering, and we will check it for you.

Compatibility & Buyer Notes

Please review the following before purchasing to ensure correct fitment.

Threaded Bottom Bracket Shell Required

The included crankset uses a BC1.37"×24T threaded (BSA/English) bottom bracket, 68-73mm wide. It is not compatible with press-fit shells (BB86/BB92/PF30, etc.). Confirm your frame has a threaded BSA-style BB shell before ordering.

Set the App to 12-Speed

The cassette, chain, and crankset in this bundle are all matched for a 12-speed drivetrain. After pairing, set the EDS TX speed count to 12 in the WHEELTOP app so indexing lines up correctly.

Cassette Requires a Shimano HG Freehub Body

The included cassette installs on a standard Shimano HG-splined freehub body — the same driver as an 11-speed cassette. It is not compatible with a SRAM XD or XDR driver. Check your rear hub before ordering.

This Listing is for Rim Brake Only

The levers included are rim brake levers and the calipers are rim brake calipers — compatible with standard caliper brake cable pull. If you ride a disc-brake frame, please see our separate disc brake listing. Rim and disc brake components are not interchangeable.

App Pairing Required Before First Ride

After installation, pair both derailleurs to the WHEELTOP app over BLE, set your speed range, and run gear calibration. The app is free on iOS and Android.

Chain Needs Trimming to Fit

The chain ships at 126 links, the standard length for most road frames. It should be sized to your specific chainring/cassette/frame combination during installation using a chain tool.

Reviews

Feedback from verified purchases in our eBay store.

Photos from buyers

Videos
WheelTop

WheelTop

839

How to Calibrate WHEELTOP EDS TX: Complete Electronic Shifting Fine-Tuning Guide

In this guide, I show you how to properly fine-tune your WHEELTOP EDS TX electronic shifting system using the official app. By adjusting the B-tension gap to…

Pedaler

Pedaler

20600

Wheeltop EDS TX: The Best Budget Wireless Groupset? 2-Month Real-World Review

Forget the big-brand tax! After two months and over 1,000km, the Wheeltop EDS TX has proven to be a savior for rim-brake enthusiasts and budget-conscious…

Dave Noakes

Dave Noakes

23600

The Ultimate Upgrade for Old Rim Brake Road Bikes: Wheeltop EDS TX Wireless Electronic Groupset In-depth Review & Installation Guide

Hey everyone! Today we're doing something big—fully modernizing this traditional 10-speed rim brake road bike. Finding a wireless electronic groupset that…

Pedaler

Pedaler

20600

Did This Chinese Groupset Fail? | WheelTop EDS TX 1-Year Long-Term Review (12,000km)

Stop asking if it’ll break. After 12,000km, the WheelTop EDS TX is still standing strong. It’s handled pro-level efforts without a single hiccup. Yeah, the…

Dave's Cycling

Dave's Cycling

20500

Goodbye Cables! Full Road Bike Conversion from Shimano Ultegra to WHEELTOP EDS TX Wireless Shifting

Want to breathe new life into your road bike? Join me as I install the WHEELTOP EDS TX ! I’ll show you how to ditch those annoying shifter cables and use the…

Simone Montanini Bici

Simone Montanini Bici

22000

I Tested a €739 Electronic Groupset! WheelTop EDS-TX Deep Review: Can it Really Rival Shimano and SRAM?

I unbox and field-test the WheelTop EDS-TX electronic groupset. Priced at approximately €739, this system is impressively lightweight (beating SRAM Force) and…

Blackwater Cyclist

Blackwater Cyclist

8450

Is It a Game Changer? WHEELTOP EDS TX Full Review: The 3-14 Speed Wireless Groupset

Disrupting the market? In this video, I’m testing the WHEELTOP EDS TX , the groupset that works with 3 to 14 speeds. I’ll show you how it handles mixed-brand…

Pedaler

Pedaler

20600

[Long-Term Review] Stop Overpaying for Big Brands? Wheeltop EDS TX Real-World Test: Is it Actually Good?

Is Chinese wireless tech actually a contender? After 6 months of crushing Greek climbs, Pedaler proves the Wheeltop EDS TX is no joke. Featuring top-tier…

oz cycle

oz cycle

91600

WHEELTOP EDS TX Installation Guide: Step-by-Step Setup from Hardware to App Sync

Ready to go wireless? Join me as I install the WheelTop EDS TX on a road bike. I’ll guide you through the entire setup: replacing your old mechanical parts,…

David Arthur - Just Ride Bikes

David Arthur - Just Ride Bikes

232000

Shimano Finally has a Competitor! WheelTop EDS TX Wireless Groupset Reviewed: The Ultimate Retrofit Upgrade!

In this review, I put the WheelTop EDS TX wireless groupset to the test by retrofitting it onto an older 10-speed bike. Its standout feature is the…

Jamey De Neve 🚲🛠️

Jamey De Neve 🚲🛠️

15600

WHEELTOP EDS TX Installation Guide & Troubleshooting: Giant Defy Electronic Shifting Setup

In this detailed setup of the WHEELTOP EDS TX on a Giant Defy, I tackle the complexities of integrated cabling and front derailleur clearance issues. By…

The Cycle Workshop

The Cycle Workshop

55600

Wheeltop EDS-TX Review: Is This Budget Wireless Groupset a Real Shimano Di2 Killer? (4-Month Long-Term Test)

After 4 months of abusing the WHEELTOP EDS-TX on my gravel hack, I’m sold. Despite some stiff hood rubbers and minor bolt rust, the hardware is over-engineered…

Don't Get Dropped Cycling

Don't Get Dropped Cycling

8340

WHEELTOP EDS TX Review: The Ultimate Wireless Electronic Shifting Guide & First Ride Test

Ditching cables for the WHEELTOP EDS TX was the best upgrade I’ve made. The installation is clean, the carbon levers feel great for smaller hands, and the…

FAQ
Which brand of cassette does it support?

The app allows you to customize speed and gear spacing, so in theory it supports 3–14 speed cassettes from all brands.

How to pair the app?

On the home page, click the [Add Device] button. The APP will automatically navigate to the nearby devices list page. Locate your device's MAC address, then click to add and bind it. After successful binding, you will need to name the device.

Step 1: Click the Add button on the home page Step 2: Turn on your phone’s Bluetooth to search for nearby devices

Step 3: Select nearby bindable devices to add Step 4: Name the device

One last thing — and this is where a lot of users get stuck.

To connect, you need to tap the Bluetooth icon in the app. Before doing so, make sure the derailleur hasn't gone into sleep mode. If it has, just give the derailleur a tap or shake the bike to wake it up. Once the connection is successful, the Bluetooth icon will light up — and you're all set to start adjusting your derailleur.

How to do the initial calibration?

For EDS TX series:

  1. Set the front derailleur to the largest sprocket
  2. Set the rear derailleur to the smallest cog position
  3. Open the WHEELTOP App → Initial Calibration

Use "<" or ">" buttons to align the RD pulley with the smallest cog

Exit the initial calibration page

For EDS GeX and OX series: Same steps but skip step 1 (no FD adjustment required).

How to download and register the WHEELTOP app?

WHEELTOP APP download:

app Store

Google Play

After successful registration, log in to the app.

You can also download the APK file directly: APK Download Link

For first-time use, please register with your email.

How to perform a factory restore?

It works like a factory reset for gear values. Use it when gear values have been misadjusted to restore the preset values.

Path: APP → Settings → Device-adjustment → Fine-tuning → "Factory-restore" button at the bottom.

The rear derailleur position is inconsistent with the APP display

1.Go to the initial calibration page in the APP 2.Select the rear derailleur (upper section) 3.Press the right arrow (▶) and hold until the RD moves back to the smallest cassette

More questions (10)
The device cannot shift immediately after not riding for a long time

1.Charge the system — a low battery can delay activation 2.Gently shake the frame — this helps wake up the rear derailleur more quickly

Can EDS be paired with bike computers?

Yes!EDS TX, OX2.0, and GeX can all be paired with bike computers.

How do I power off and power back on my WHEELTOP EDS device?

In the latest version of the WHEELTOP app, swipe left on the rear derailleur's device card to bring up the **Disconnect / Power Off** menu, then tap **Power Off**. This is useful for shutting the system down during shipping or storage. To power the device back on, plug in the magnetic charging cable for **2-3 seconds** — once the charging indicator light turns **red**, the device powers on and reactivates.

WHEELTOP app screen showing the swipe-left Disconnect / Power Off menu
How do I achieve the most precise and smooth shifting with my EDS TX groupset?

Getting competition-grade shifting out of the EDS TX takes more than a quick app pairing. Follow this step-by-step setup protocol to make sure your system runs flawlessly across every gear.

Phase 1: Before You Start — Three Golden Rules

1. Derailleur Hanger Alignment

This is the single most important step. Even a slightly bent hanger will prevent the system from shifting with 100% consistency. Use a proper alignment tool or take the bike to your local shop before doing anything else.

2. Keep Your Drivetrain Consistent

For the best results, avoid mixing cassettes and chains from different brands. Matching components means the cassette ramp profiles and chain plates work exactly as intended — and shifting feels it.

3. Waxed Chain? Check for Stiff Links

If you run a waxed chain, make sure there are no stiff links and wipe off any excess wax from the outer plates. Built-up wax can stop the chain from dropping cleanly onto smaller cogs.

Phase 2: Step-by-Step Tuning Protocol

Step 1 — Initial Positioning (Smallest Cog)

  • Select your cassette size in the Wheeltop App.
  • Shift the chain to the smallest cog and the largest chainring
  • Important: Back the mechanical limit screws out completely — don't use them to set position yet. Let the motor do the work at this stage.
  • Use the app's micro-adjustment arrows to align the top jockey wheel directly under the smallest cog until the chain runs completely silent.

Step 2 — Fine-Tuning Across the Cassette (The 10-Unit Rule)

  • Open the Fine Tuning section in the app.
  • Shift up one cog at a time. If a shift feels rough or noisy, adjust in increments of 10 units.

Pro TipA new setting doesn't register until you shift back down to the previous cog, then back up to the one you adjusted. Work through the entire cassette this way for a fully "mapped" drivetrain.

Step 3 — B-Gap (Tension Screw) Adjustment

Skip the guesswork of a specific measurement. Instead, dial the B-screw until the jockey wheel is as close to the cassette as possible without any rumble or interference during shifts. Do this check in the smallest chainring, where chain angle is at its most extreme.

Step 4 — Front Derailleur (FD) Calibration

  • Use Initial Calibration only for the FD — avoid Fine Tuning unless you have a specific reason.
  • With the chain on the smallest cog / large chainring, adjust the FD outward until there's no chain rub — but make sure it doesn't touch the crank arm while pedaling.

Auto-TrimThe EDS TX automatically micro-adjusts the front derailleur as you shift through the rear cassette to prevent chain rub. Some light rub in extreme cross-chain positions (large/large or small/small) is normal — and those combinations are best avoided on the trail anyway.

Step 5 — Mechanical Limit Screws (Safety Backup)

  • Only adjust the limit screws after the electronic setup is fully dialed in.
  • Thread each screw in until it just makes contact with the derailleur body, then back it off 1/8 to 1/4 turn. This keeps the screw acting as a mechanical stop without interfering with the motor's travel range.

Still getting front derailleur rub? Try slightly loosening the FD mounting bolt, physically rotating the cage by a degree or two, then retightening. A small real-world angle adjustment often solves what software tweaks can't.

Why are there 6 gear values for FD fine-tuning? What do they mean?
  1. Gear 1st: Press and hold left shifter — FD moves from small to large chainring.
  2. Gear 2nd: FD on large chainring, RD on smallest 6 cogs — fine position value.
  3. Gear 3rd: FD on large chainring, RD on largest 6 cogs — fine position value.
  4. Gear 4th: FD on small chainring, RD on smallest 6 cogs — fine position value.
  5. Gear 5th: FD on small chainring, RD on largest 6 cogs — fine position value.
  6. Gear 6th: Press and hold left shifter — FD moves from large to small chainring.
What should I do if the derailleurs are stuck or can't shift?

Use the "Initial Calibration" function in the WHEELTOP app to adjust the front derailleur. Adjustment must always start from the default position.

Correct default position:

  • Set the FD at the largest chainring position
  • Set the RD at the smallest cog position
  • Use the initial calibration function in the app to adjust the FD towards the largest chainring position

Steps in the APP:

  1. Open the WHEELTOP app → Equipment Debugging → Initial Calibration
  2. Use the '<' or '>' buttons to adjust the FD guide plate position until correct
How does the rear derailleur linkage function work with limit function enabled?

When the FD is on the large chainring, RD is below 3rd gear, and limit is enabled:

  • RD Upshift: System executes an RD upshift once every 0.5 seconds.
  • RD Reaches 3rd Gear: The RD upshifts until reaching 3rd gear.
  • FD Downshift: Once RD reaches 3rd gear, system waits 2 seconds before executing the FD downshift.
After pressing the shifter lever, the rear derailleur does not shift normally

1.Check the button indicator light: If there is no light, replace the battery and test again. 2.Check the light color: If the button is lit but not green (e.g. red or yellow), the device is not paired correctly. Re-pair following the manual.

What brake systems are compatible with EDS TX?

Cable Brake Groupsets are compatible with rim brakes, V-brakes, U-clamps, and pull-cable disc brakes.

Hydraulic Disc Brake Groupset uses mineral oil, designed for Shimano's hydraulic brake system, compatible with L04C, L05A, and L04A brake pads.

What is the length of brake cables? Are they standard mechanical brake lines?

Our EDS TX/GEX Cable Brake Groupsets use standard mechanical disc brake cables, widely available in the market. Each set includes two brake cables. The length should be sufficient for most bikes.

You May Also Like
