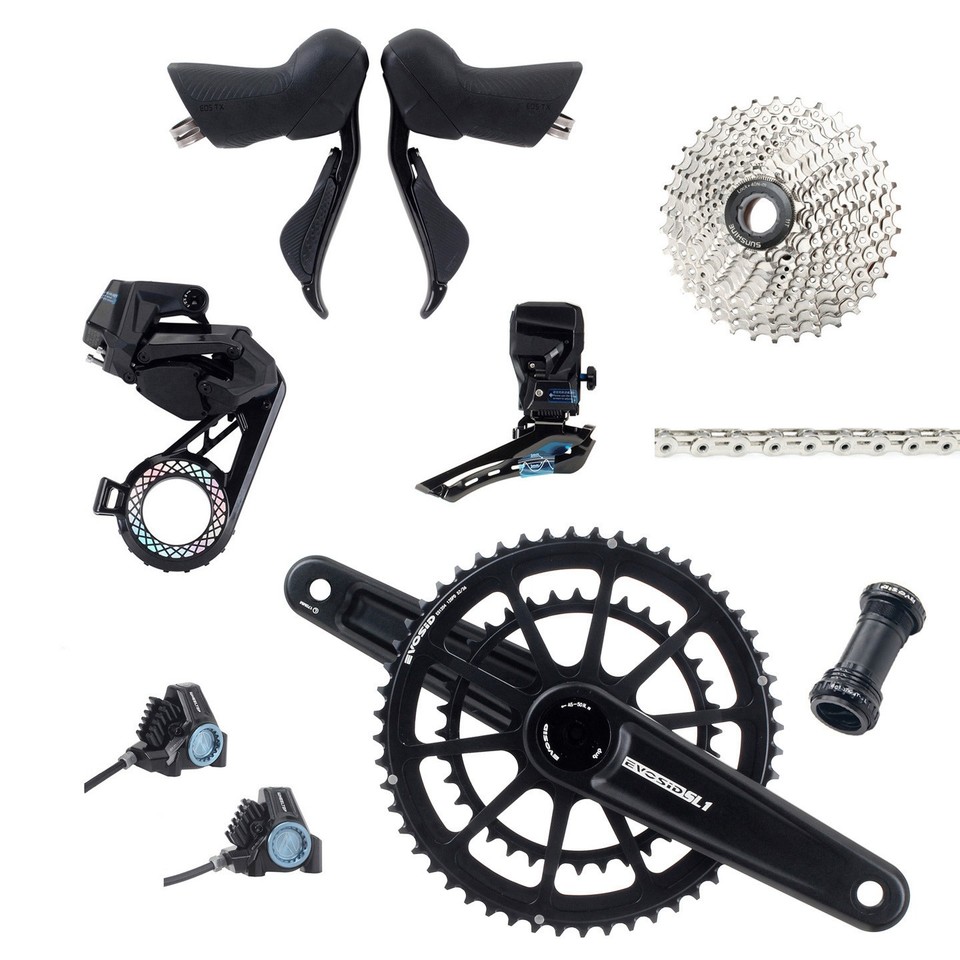

WHEELTOP EDS TX Wireless Electronic 2x12 Speed Groupset Kit Hydraulic Disc Brake

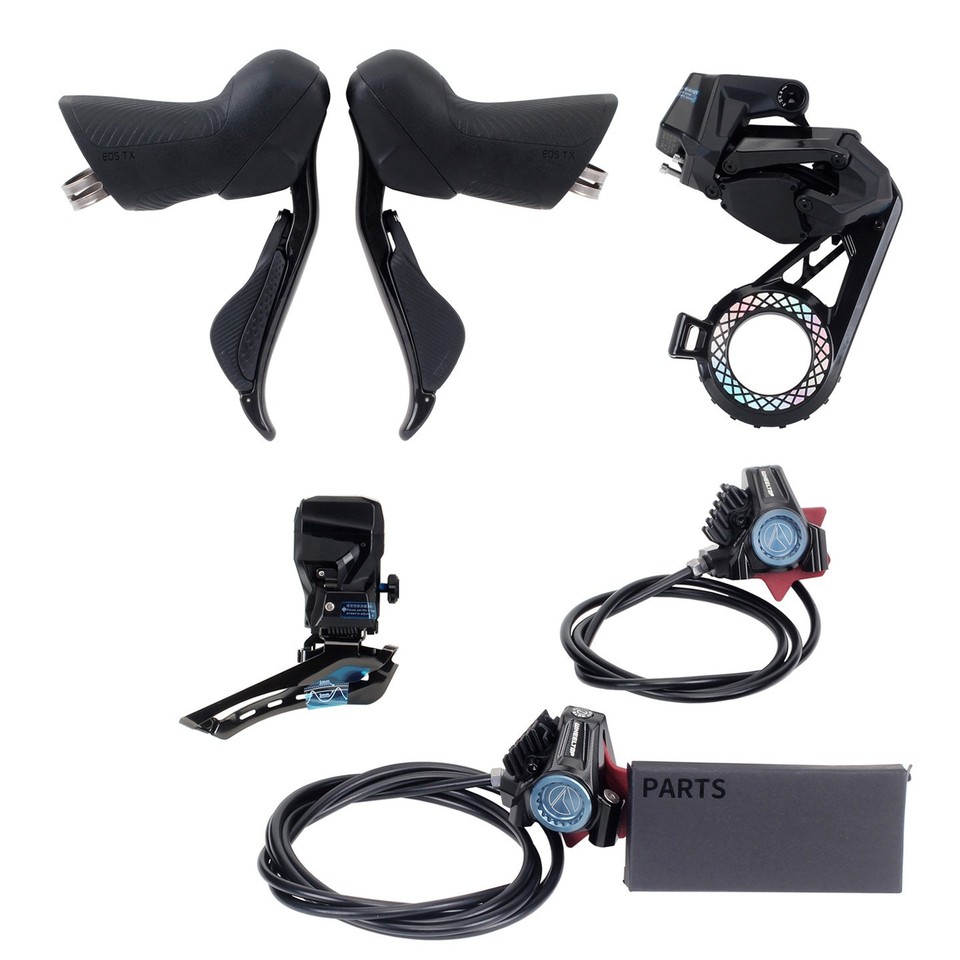

EDS TX Electronic Rear Derailleur, Oversized Pulley Cage Standard

Driven by a built-in 800mAh rechargeable battery at 8.4V, the EDS TX rear derailleur shifts instantly on a button press — zero cable lag, zero stretch over time. Unlike the standard TX, this build comes with oversized hollow ceramic-bearing pulley wheels on a carbon fiber cage fitted from the factory — not an optional add-on. Charges through a magnetic Pogopin connector — snap it on, no port covers, no corrosion.

Lower Friction, Standard on This Bundle

Oversized pulley wheels reduce the chain's wrap angle around each pulley, which means less chain articulation per revolution and measurably lower friction across the full drivetrain — noticeably smoother under hard pedaling effort, with no learning curve and no setup difference from a standard TX rear derailleur.

Why Oversized? The Chain Wrap Angle Difference.

At 12 teeth, the oversized pulleys are physically larger than a conventional jockey wheel — letting the chain bend through a gentler arc at each engagement. Less arc per revolution means less per-link articulation friction across every pedal stroke. Hollow ceramic-bearing pulleys mounted on a carbon fiber cage keep the drivetrain quieter and more responsive under load.

Precise Front Shifting on Demand

The EDS TX front derailleur runs on its own built-in 600mAh rechargeable battery and shares the same 8.4V system, magnetic Pogopin charging, and BLE/ANT+ wireless link as the rear unit. Pair both derailleurs to the WHEELTOP app for synchronized setup, gear mapping, and live status — front and rear shift in concert with a single button press from the lever.

Shift with a Button. Brake with the Lever.

A press of the shift button sends the command wirelessly straight to the derailleur — no cable pull, no mechanical play to wear in. Each lever runs on a single CR2032 button battery, swappable in seconds without tools.

Carbon Fiber Body — Light, Stiff, Precise.

The carbon fiber lever body is high-grade cold-laminated carbon fiber. The woven surface texture holds grip through wet descents without repositioning. The shift button sits exactly at thumb reach: index finger pulls the brake lever, thumb taps the shift button — no hand movement required.

One Lever, Two Functions.

Brake and shift from the same contact point. The lever body handles the brake pull, the button handles the gear command — both without taking your fingers off the bar.

CNC Unibody. Built to Run Cool.

The caliper body is CNC-machined from aluminum alloy as a single unit, ensuring rigidity and long-term safety under hard braking. Shark-fin heat sinks on the caliper body increase surface area for better heat dissipation, slowing down thermal fade on long descents. A unidirectional oil circuit prevents brake fluid from flowing backward, keeping lever feel sharp and response quick.

Full Ceramic Pistons

Full ceramic pistons resist high heat and hold a consistent bite point ride after ride — no fade, no spongy lever after a long climb or fast descent.

Flat Mount. Pre-Bled. Ready to Ride.

Hoses are pre-cut and pre-bled from the factory. Unbox, install, ride. The mineral oil system is non-corrosive and easy to maintain at home.

Forged Alloy Arms on a DUB Spindle

The EVOSID SL1 crank arms are forged aluminum alloy, CNC-machined into a one-piece structure for high stiffness and crack resistance under hard pedaling. They run on a SRAM DUB-standard 28.99mm spindle.

Forged and CNC-Machined, Not Just Machined from Stock

Starting from a forged aluminum alloy blank rather than machining from bar stock gives the crank arm a stronger internal grain structure — the factory quotes roughly 15% lower weight and 20% higher stiffness on this crankset. The crank arms weigh 660g at 170mm or 609g at 165mm.

Threaded Bottom Bracket, Cups Included

The crankset ships with its matching EVOSID BC1.37"×24T (BSA/English threaded) bottom bracket. Overall width is 90mm and it accepts bottom bracket shells from 68mm up to 73mm wide, with included spacers (two 2.6mm gaskets, a 3mm spacer, and a 4.5mm spacer) to take up the difference. Threading directly into a standard threaded shell also avoids the creaking that press-fit bottom brackets are known for.

Is Your Frame Compatible?

As long as your frame's bottom bracket shell is BSA (English thread) between 68mm and 73mm wide, this bottom bracket installs without any issue. It is not a press-fit design.

ES1204: One Piece of CNC 7075 Aluminum

Both rings are CNC-machined from a single piece of 7075 aerospace-grade aluminum and finished in sand-blasted anodized black. The one-piece construction stays rigid without the extra hardware of two separately bolted rings — the complete chainring weighs just 169g (50-34T) or 170g (52-36T).

Shift Ramps for Fast Upshifts

Dedicated tooth profiles and chain-guide ramps on the big ring catch the chain cleanly as it climbs from the small ring, for quick, predictable front shifts. Tooth tips are also width-optimized to reduce chain and ring wear.

Compact

Mid-Compact

Close Ratio

All-Rounder

Wide Range

Semi-Hollow Plates. Gold & Silver Finish.

The SUMC S12L is a dedicated 12-speed chain with semi-hollow plates in a gold and silver finish, compatible with Shimano, SRAM and Campagnolo 12-speed drivetrains. A quick link is included. Supplied at 126 links — trim to fit your frame during installation.

Step 1

Pair Your Components

All Four Components, One Screen

The Connected view puts the rear derailleur, front derailleur, and both shift levers on one screen, so you can check every component's charge level at a glance before a ride.

Step 2

Set Your Cassette Speed

Not Locked to One Speed Count

Unlike a mechanical derailleur built for one fixed speed, EDS TX is fully configurable — set whatever speed count you're running, directly in the app.

Step 3

Run Initial Calibration

Guided On-Screen Alignment

No guesswork — use the on-screen +R / −L controls to nudge the guide pulley until it sits precisely under the smallest sprocket, then tap Finish.

Step 4

Fine-Tune Every Gear

Need to Go Further?

Open Rear Derailleur Gear Parameters to view or manually edit the exact position value for any gear, then save — a level of precision cable systems simply can't match.

Set It Once, Ride Your Way

Reassign the SW-L and SW-R paddles to trigger whichever shift function feels natural, or tap Factory Restore to reset instantly.

Live Stats While You Ride

Tap GO in the bottom bar to switch into the ride screen, where elapsed time, calories, pace, average heart rate, cumulative shifts, and climb update in real time alongside turn-by-turn map navigation.

Stay Current, Wirelessly

Tap to review what's new, then update over the air — just make sure the component has enough charge before you start.

9

Core drivetrain parts, one box

12-Speed

Cassette, chain & shifting matched

20,000+

Shifts per RD charge

BLE+ANT+

Dual-protocol wireless

Brand

WHEELTOP (shifting) · EVOSID (crankset) · SUNSHINE-SZ (cassette) · SUMC (chain)

Model

EDS TX Disc Brake Carbon Wireless Groupset Bundle

Suitable For

Disc-mount road and gravel frames with a threaded BSA (68-73mm) bottom bracket shell and front derailleur mount

Speed

12-Speed (set in the WHEELTOP app to match the included cassette)

Cassette

SUNSHINE-SZ 12-Speed (Shimano HG driver) — 11-28T (306g) · 11-32T (367g) · 11-34T (388g)

Chain

SUMC S12L, 12-speed, semi-hollow, 126 links, approx. 263.6g, quick link included

Crankset

EVOSID SL1, forged & CNC-machined crank arm, 165/170mm, DUB 28.99mm spindle · EVOSID ES1204 one-piece 7075 double chainring, 50-34T or 52-36T · EVOSID BC1.37"×24T threaded BB (68-73mm) included

Brake Calipers

Hydraulic disc · CNC unibody aluminum alloy · Full ceramic pistons · front 135g / rear 170g · Flat mount only (not post mount) · 160mm rotors only

Rear Derailleur Pulley

Oversized 12-tooth hollow pulley wheels with ceramic bearings on a carbon fiber cage — standard on this bundle

Wireless Protocol

BLE / ANT+ — pairs with cycling computers, displays current gear position and battery level

Charging Port

Pogopin magnetic connector · Red light = charging, light turns off when fully charged

Battery Capacity

Rear derailleur 800mAh · Front derailleur 600mAh · System voltage 8.4V

Shifter Battery

CR2032 button cell (tool-free replacement)

Weight — Shifting Kit

Front derailleur 191.3g · Rear derailleur 340g · Left lever 223.2g · Right lever 223.6g · Front caliper 135g · Rear caliper 170g

Warranty

WHEELTOP Official 1-Year Quality Warranty

This Bundle is Disc Brake Only

The levers included are disc brake levers and the calipers are hydraulic disc calipers — compatible with disc-mount frames only. If you ride a rim-brake frame, please see our separate rim brake listing. Rim and disc brake components are not interchangeable.

Threaded Bottom Bracket Shell Required

The included crankset uses a BC1.37"×24T threaded (BSA/English) bottom bracket, 68-73mm wide. It is not compatible with press-fit shells (BB86/BB92/PF30, etc.). Confirm your frame has a threaded BSA-style BB shell before ordering.

Set the App to 12-Speed

The cassette, chain, and crankset in this bundle are all matched for a 12-speed drivetrain. After pairing, set the EDS TX speed count to 12 in the WHEELTOP app so indexing lines up correctly.

Flat Mount Calipers Only

The included calipers are flat mount only, not post mount, and support 160mm rotors only. Confirm your frame and fork are flat mount and take 160mm rotors before ordering — the included calipers and hoses must match your frame's specification.

App Pairing Required Before First Ride

After installation, pair both derailleurs to the WHEELTOP app over BLE, set your speed range, and run gear calibration. The app is free on iOS and Android.

Chain Needs Trimming to Fit

The chain ships at 126 links, the standard length for most road frames. It should be sized to your specific chainring/cassette/frame combination during installation using a chain tool.
