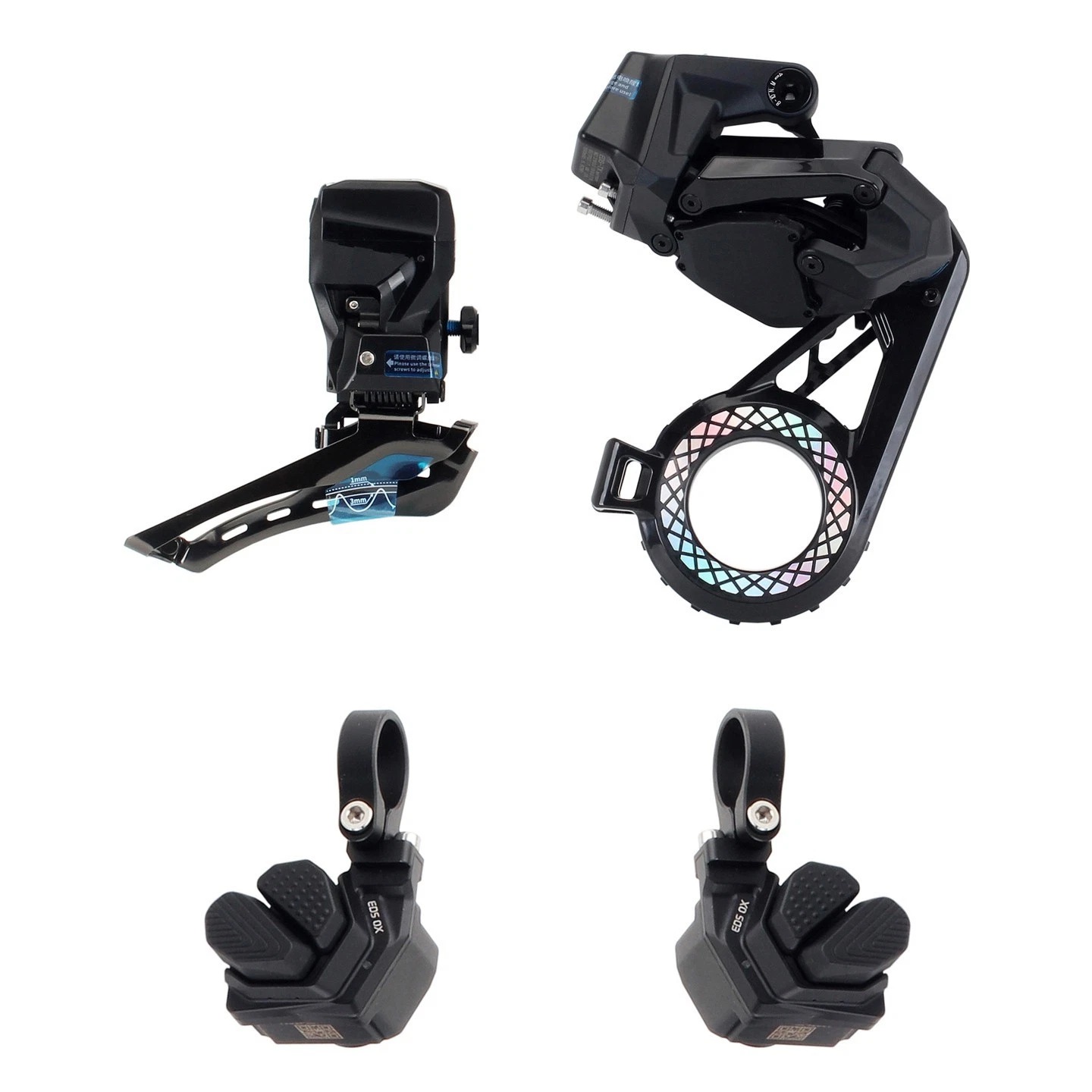

A fully wireless electronic shifting kit built for flat-bar road and dual-chainring gear bikes. Front and rear derailleurs shift on a button press — no cables, no housing, no barrel adjusters. Compatible with 3-14 speed, 10-36T cassettes, fully configurable through the WHEELTOP app via BLE/ANT+. The rear derailleur is available with two cage options — the Alloy Cage (aluminum alloy, standard 12T pulleys) and the Carbon Ceramic OSPW (carbon fiber hollow cage, 12-tooth ceramic bearing oversized pulley wheels) for reduced drivetrain friction. Brake calipers are not included — the TXR is a pure drivetrain kit.
Both versions share the same rear derailleur platform — 800mAh built-in battery at 8.4V, carbon fiber linkage, instant button-press shifting, Pogopin magnetic charging, 3-14 speed / 10-36T cassette range set through the WHEELTOP app. Only the cage material and pulleys differ.
Standard
Alloy Cage
Rugged aluminum alloy derailleur cage with standard 12-tooth pulleys — a tougher, value-oriented option.
Cage materialAluminum Alloy
PulleyStandard 12T
Weight354.2g
Upgrade
Upgrade
Carbon Ceramic OSPW
Hollow carbon fiber cage upgraded with 12-tooth ceramic bearing oversized pulley wheels (OSPW). The oversized pulleys let the chain bend through a gentler arc at each jockey engagement, reducing per-link articulation losses — the same oversized pulley cage found on the EDS TT triathlon groupset.
Cage materialCarbon Fiber
PulleyCeramic Oversized 12T
Weight336.4g
Front Drivetrain
Electronic Front Derailleur
Wireless electronic actuation for the front shift — the half of the drivetrain cable systems compromise on most.
Precise Front Shifting on Demand
The EDS TXR front derailleur runs on its own built-in 600mAh rechargeable battery and shares the same 8.4V system, magnetic Pogopin charging, and BLE/ANT+ wireless link as the rear unit. Pair both derailleurs to the WHEELTOP app for synchronised setup, gear mapping, and live status — front and rear shift in concert with a single press of the trigger.
FD Battery
600mAh / 8.4V
Built-in rechargeable lithium
Charging
Pogopin Magnetic
Red = charging, green = full
Wireless
BLE / ANT+
Pairs with cycling computers
Weight
188.4g
Front derailleur, both builds
Cockpit
Wireless Electronic Trigger Shifters — Left & Right
Flat-bar trigger shifters that send gear commands wirelessly — no cable routing, no housing, nothing to stretch or corrode.
Shift with a Thumb. No Cables Required.
A press of the trigger sends the shift command wirelessly straight to the derailleur — no cable pull, no mechanical play to wear in. The same trigger shifters used on the EDS OX 2.0 MTB groupset, fitted here for flat-bar road and urban bikes. Each shifter runs on a single CR2032 button cell, swappable in seconds without tools.
Shifting
Wireless Electronic
Trigger press, no cable lag
Mount
Flat Bar
Left + right pair included
Battery
CR2032
Tool-free coin cell swap
Weight (pair)
134.2g
67.1g per shifter
Smart Control
Full Control from Your Phone
Download the WHEELTOP app to pair, tune, and monitor your drivetrain - all from your handlebars.
Everything You Need, Right in the App
Install the WHEELTOP app on iOS or Android. Connect over Bluetooth, and you have instant access to gear position, battery level, riding data, firmware updates, and full after-sales support - all in one place.
Live Riding Data
Speed, cadence, heart rate, mileage, and ride time displayed in real time
Battery & Shift Count
See remaining charge and total shift cycles at a glance
OTA Firmware Updates
Push updates wirelessly - performance improvements without cables or tools
Two Riding Modes. One Tap to Switch.
Switch between Standard and Racing mode directly in the app. Each mode is tuned for a different riding style - no tools, no hassle.
Standard Mode
Auto-sleep when idle. Lower power draw, longer battery life. Perfect for long days in the saddle.
Racing Mode
Always-on, maximum responsiveness. Boosted signal power for noise-resistant shifting under pressure.
Pair, Calibrate, Fine-Tune - All in the App
Use the WHEELTOP app to pair your derailleur, run initial position calibration, and micro-adjust each individual gear. No limit screws to guess at - just tap and confirm.
Per-Gear Fine Adjustment
Dial in every sprocket individually. If one gear feels off, adjust it directly in the app without touching the bike - a precision that cable systems simply can't match.
Wireless Electronic3-14 Speed10-36T CassetteApp-CustomisableBLE + ANT+Flat-Bar Trigger ShiftersAlloy or Carbon Ceramic OSPW CageCarbon Fiber RD LinkagePogopin Magnetic Charging800mAh Rear / 600mAh FrontCR2032 ShiftersNo Brake Calipers Included
Technical Details
Specifications
Full technical breakdown of the EDS TXR wireless electronic shifter/derailleur kit.
CR2032 Button Batteries (pre-installed in shifters)
×1
Spare Parts Kit + User Manual
Before You Order
Compatibility & Buyer Notes
Please review the following before purchasing to ensure correct fitment.
Flat-Bar Bikes Only — Not Compatible with Drop Bars
The TXR uses flat-bar trigger shifters and does not include drop-bar levers. If you ride a drop-bar road bike, please see the EDS TX instead.
Brake Calipers Are Not Included
The TXR is a drivetrain-only kit. Your existing rim brake or disc brake calipers are retained — only the shifting system is replaced.
Confirm Your Cassette Falls Within Range
The EDS TXR supports 3-14 speed cassettes from 10T to 36T, with the exact speed count set in the WHEELTOP app. Verify your cassette falls within this range before ordering.
App Pairing Required Before First Ride
After installation, pair both derailleurs to the WHEELTOP app over BLE, set your speed range, and run gear calibration. The app is free on iOS and Android.
Our Service Promise
Why Choose Aoeagle
More than just a groupset — every order comes with the Aoeagle difference.
Authorised WHEELTOP Partner
As an official WHEELTOP authorised partner and 2025 Emerging Partner of the Year recipient, every product is 100% genuine, sourced directly from the factory. 1-year official warranty, hassle-free aftercare included.
Pre-Shipment Quality Check
Before every unit leaves our warehouse, our team thoroughly inspects, pairs, and tests each device to confirm it's working perfectly — no defects, no glitches, no quality issues. Your groupset arrives ready to install.
Expert Tech Support
Unlike most sellers, our team knows every WHEELTOP model inside out — years of hands-on installation and tuning. App pairing, shifting calibration, any question — just reach out.
Thank you for visiting our listing. If you have any questions before purchasing, please send us a message through eBay and we'll respond within 24 hours.
