Best Cassette Upgrades for WHEELTOP EDS: Maximize Your Range

Why Your Cassette Choice Matters More Than You Think

Most people buying a WHEELTOP EDS system obsess over the derailleur itself — the wireless shifting, the app tuning, the battery life. Fair enough. But the cassette is where that system either sings or struggles. Picking the best cassette for WHEELTOP EDS electronic derailleur isn't complicated, but there are a few hard limits and some genuinely smart choices depending on where you ride. The EDS derailleur supports cassettes up to 52T, which is a serious range — wide enough for full alpine MTB duty, and flexible enough to cover road, gravel, and everything between. Here's how to make the most of it.

What the WHEELTOP EDS Actually Supports

Let's get the hard specs out of the way. The WHEELTOP EDS rear derailleur is designed around 11-speed drivetrains and accepts cassettes ranging from 11T to 52T on the large cog. The clutch mechanism and total capacity are tuned for that range, so you're not pushing anything to its limit when you run a 10-52T MTB setup. Worth noting: the system uses standard Shimano HG freehub compatibility as its baseline, which opens up a huge selection of cassettes from multiple brands without any adapter headaches. If you're running a Microspline or XD driver body, that's a separate conversation — but for the vast majority of builds, HG freehub is what you have and what works.

Cassette Ratios by Terrain: Don't Over-Gear or Under-Gear Yourself

This is where most people go wrong. They either run a massive range cassette on a bike that never sees a serious climb, or they run a tight road cassette on a gravel bike and suffer on any loose ascent. The EDS handles all of these well electronically — the motor shifts just as confidently on a 52T as on a 34T — but the mechanical reality of your riding still determines what ratio makes sense.

Trail MTB: 10-52T

For trail and enduro riding, a 10-52T cassette is the obvious choice. That 5.2:1 range means you can run a single 32T or 34T chainring and still have a gear for basically any gradient you'll encounter on trail — including those 25%+ fireroad pushes at the end of a long day. In our testing on mixed singletrack with the WHEELTOP EDS OX 2.0 (which we covered in detail in our WHEELTOP EDS OX 2.0 review), this combination gave near-instant shifts under load, with no ghost shifting even on rough, chattery descents. The 10T small cog also keeps your top-end speed usable if you're hitting flow trails with long straights.

Gravel: 11-42T

Gravel is a more nuanced category. An 11-42T cassette paired with a 40T or 42T single chainring gives you a solid all-rounder — fast enough on packed gravel descents, low enough for loaded climbs. If you're running a double chainring setup, you can get away with 11-34T and keep your shifts tighter and more predictable on the flats. Riders we spoke to doing multi-day gravel events tended to prefer the 11-42T as the sweet spot: enough low-end without the large-step jumps you get with a 10-52T. For a deeper look at how to configure the full system for mixed-surface riding, the WHEELTOP electronic shifting gravel setup guide is worth reading before you buy.

Road: 11-34T

On road, 11-34T is the practical ceiling for most riders. It covers everything from flat criterium-style riding to genuine hilly terrain without the big jumps between gears you get on wider-range cassettes. If you're riding mostly flat roads or you have a double chainring, 11-28T keeps the steps between gears tight and the cadence consistent. The EDS shifts these close-ratio cassettes with the same decisiveness as wider ones — there's no noticeable difference in shift quality between an 11-28T and a 10-52T in terms of response time.

Compatible Brands: What We've Actually Tested

Here's the thing: because the EDS runs on standard Shimano HG indexing logic and a Shimano-compatible freehub, you have a lot of options. Not all of them are equal. Shimano cassettes — the CS-M8100, CS-HG81, or even the more affordable CS-HG400 — work cleanly out of the box with no tuning adjustments needed. SRAM cassettes with an HG driver body (PG-1130, PG-1210) also work well, though SRAM's slightly different tooth profile on some models can occasionally require a small barrel adjuster tweak during initial setup. SunRace makes some genuinely excellent value cassettes — the CSMZ90 10-46T and CSMS8 11-46T are both worth considering for gravel or light trail use. They're lighter on the wallet and heavier on the bike compared to Shimano XT, but the shift quality is solid. Sensah cassettes have worked fine in testing, though their quality control can be inconsistent — if you go that route, inspect before installing. For anyone looking at this as part of a broader budget build, the best cheap wireless rear derailleur comparison puts cassette cost in context of the full drivetrain spend.

Freehub Compatibility: Don't Get Caught Out

Standard Shimano HG freehub bodies cover the vast majority of cassette swaps you'll do with the EDS. If you're running a wheelset with a Shimano HG body and going up to 11-speed, you're fine. The one catch: 10-speed HG cassettes won't index correctly with the EDS's 11-speed derailleur calibration — stick to 11-speed cassettes. If your hub has a Microspline or XD driver, you're in different territory and will need a cassette designed for that interface (Shimano 12-speed Microspline or SRAM XD respectively), but those configurations sit outside the standard EDS HG setup. When in doubt, check your freehub body before ordering.

How to Swap Your Cassette: The Short Version

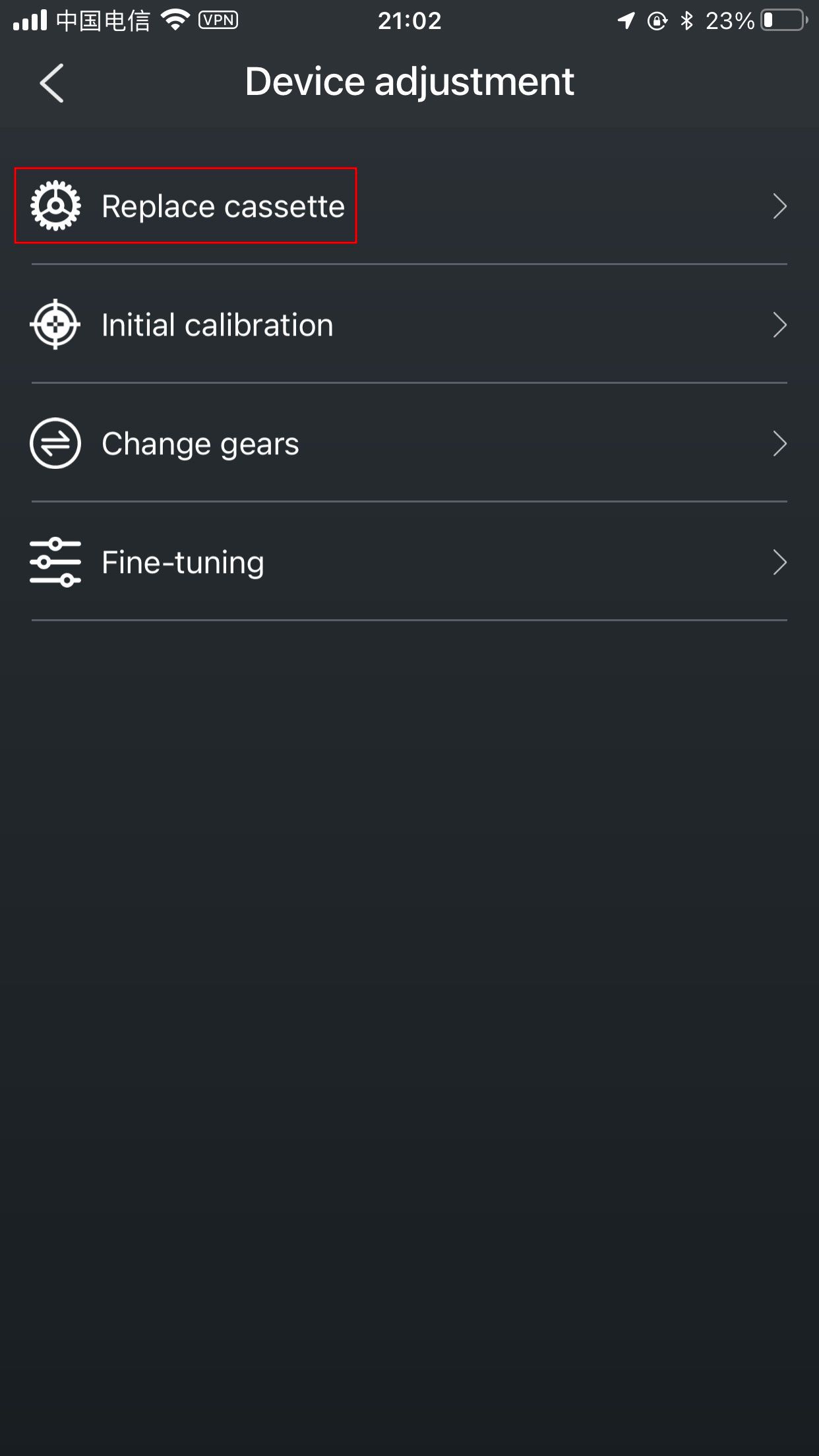

Cassette swaps are genuinely straightforward on the EDS. You don't need to recalibrate the derailleur from scratch — the electronic indexing compensates for minor chain length and cassette differences automatically. Remove the wheel, use a cassette lockring tool and chain whip to pull the old cassette, clean the freehub body, slide the new cassette on (make sure the splines align), torque the lockring to 40 Nm, and reinstall the wheel. Then open the WHEELTOP app and run a limit adjustment check — scroll through the full cassette range and confirm the derailleur tracks cleanly to both ends. If you're jumping from a significantly different range (say, 11-28T to 11-42T), check your chain length. A chain that was sized for a 28T max cog will be too short for a 42T. The WHEELTOP EDS troubleshooting guide covers what to do if you see indexing drift after a cassette change — it's usually a one-minute fix.

Best Value Picks: Where to Spend and Where to Save

If you want the best cassette for WHEELTOP EDS electronic derailleur performance without overspending, here's the honest breakdown. For MTB: Shimano SLX CS-M7100 10-51T is the sweet spot — light enough to matter, reliable enough to forget about, and priced well below XT. For gravel: SunRace CSMZ90 10-46T is genuinely good value if you can live with the slight weight penalty; Shimano CS-HG601 11-34T or 11-42T if you want proven quality. For road: Shimano CS-HG500 11-34T is hard to beat on value, and the CS-HG700 steps up the quality for a reasonable price jump. SRAM cassettes work fine but tend to cost more for equivalent functionality on an HG-based system — you're not gaining anything SRAM-specific here. If you're planning a bikepacking or multi-day trail setup, factor in cassette weight alongside your other gear choices — a 10-52T SLX cassette versus a budget equivalent can be a 50-80g difference that adds up. Ultimately, the best cassette for WHEELTOP EDS electronic derailleur is the one that matches your actual terrain — not the widest range available, and not the flashiest brand name.
