WHEELTOP EDS TXF Wireless Groupset Shifter Derailleur Folding Flat Bar Bike
WHEELTOP EDS TXF
A fully wireless electronic shifting kit engineered specifically for folding bikes and compact flat-bar builds. The EDS TXF pairs the proven TX electronic rear derailleur with the same button-style wireless shifter used in the OX MTB groupset. No cables, no housing, no barrel adjusters. 1X single chainring configuration only. Compatible with 7–14 speed cassettes, fully configurable through the WHEELTOP app via BLE/ANT+. Available in two rear derailleur cage options — the Standard Alloy Short Cage (58mm, max 32T, built for tight folding-frame clearance on any wheel size) and the Carbon Ceramic OSPW long cage (max 36T, ceramic bearing oversized pulley wheels, 20″ wheels or larger only).

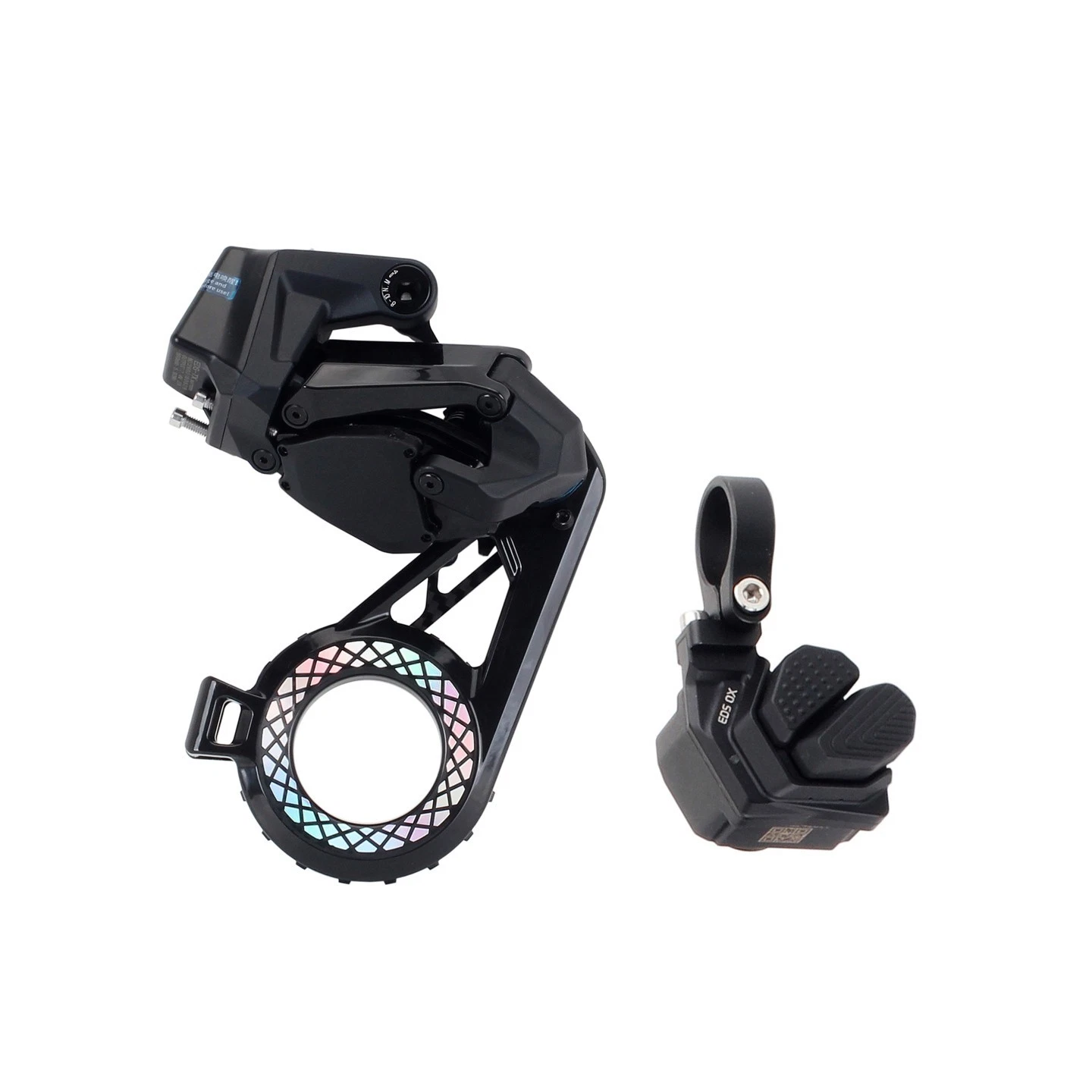

The Complete Shift Kit
TX Electronic Rear Derailleur — Choose Your Cage
Both versions share the same TX electronic platform — 800mAh built-in battery, instant wireless actuation, Pogopin magnetic charging, 7–14 speed range set through the WHEELTOP app. Cage length, material, pulleys, and max cassette sprocket size differ. Pick the version that matches your bike's wheel size.
Standard

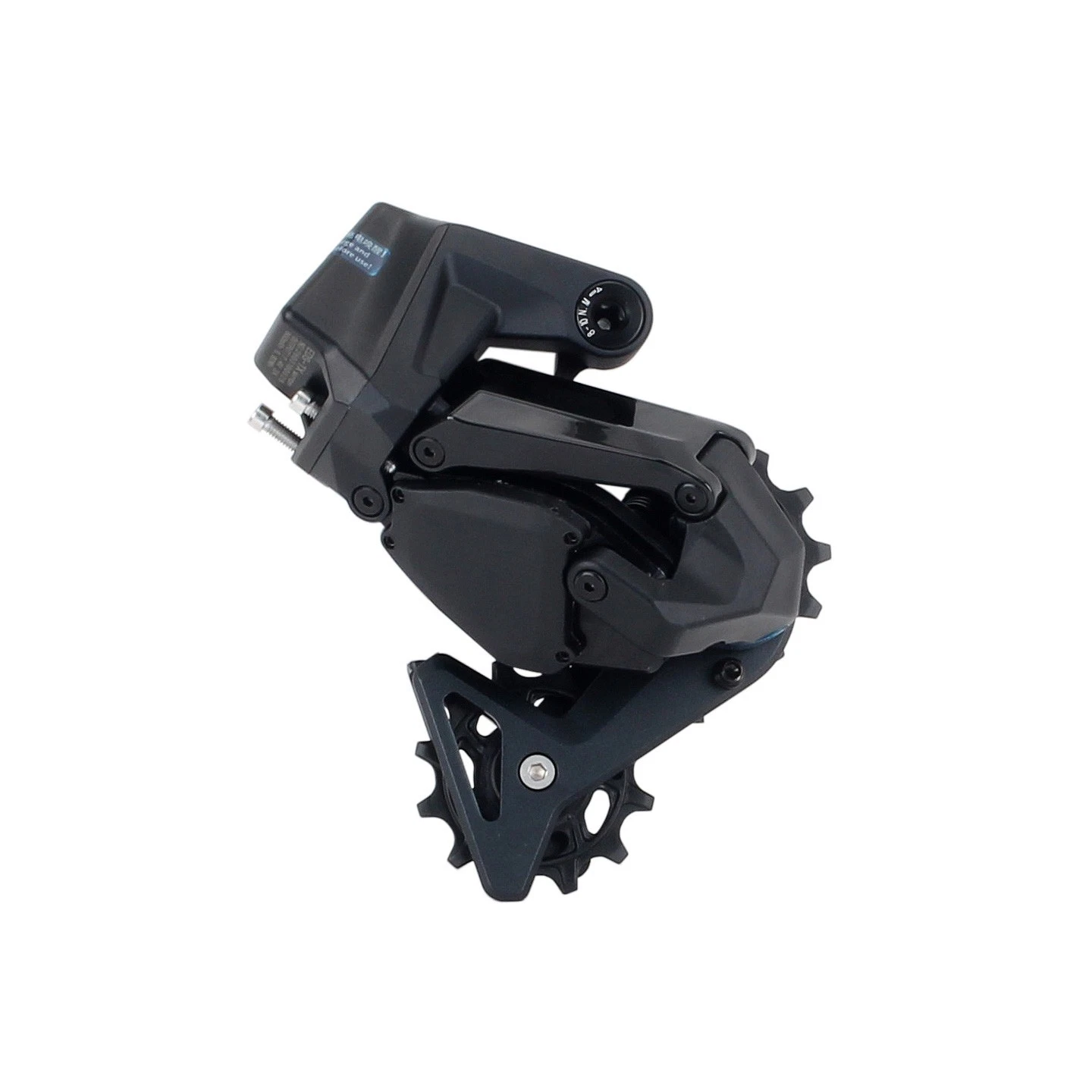

Standard Alloy Short Cage
Aluminum alloy 58mm short cage purpose-built for folding bikes. Sits tighter to the frame, clears compact folded geometries, and fits any wheel size — including sub-20″ folding platforms where a long cage risks pedal-strike or ground clearance issues.
Upgrade
Upgrade
Carbon Ceramic OSPW
Carbon fiber long cage upgraded with ceramic bearing oversized pulley wheels (OSPW) for measurably lower drivetrain friction. Requires 20″ wheels or larger — the longer cage needs more ground clearance than sub-20″ folding platforms can provide.
Why Oversized? The Chain Wrap Angle Difference.
At 12 teeth, the oversized pulleys are physically larger than a conventional jockey wheel — letting the chain bend through a gentler arc at each engagement. Less arc per revolution means less per-link articulation friction across every pedal stroke. Swapping in ceramic bearings cuts rolling resistance further versus standard steel bearings, keeping the drivetrain quieter and more responsive under load.
Pulley Size
12T Oversized
Bearing Type
Ceramic
Chain Arc
Gentler per Rev
Drivetrain Feel
Quieter · Smoother
Button-Style Shifter
Clean, minimal design with a satisfying mechanical-keyboard-style click. Shift up or down instantly — the derailleur responds with zero perceptible delay. IP67-rated dust and water resistance means it handles rain rides and post-ride washdowns without a second thought.
Feel
Mechanical Click
Crisp, tactile feedback on every press
Response
Zero Lag
Instant derailleur actuation, no cable pull
Weather
IP67 Sealed
Rain-proof, wash-proof, mud-proof
Battery
CR2032
Tool-free coin cell swap, years of life
CR2032 Battery — Replaced in Seconds, No Tools Required.
The battery compartment cover sits on the back of the shifter body. To swap a cell, simply take a fresh CR2032, press it flat against the cover, and rotate — the cap threads off cleanly with nothing but finger pressure. No screwdriver, no coin, no dedicated tool. Drop in the new cell, twist the cover back on, and the shifter responds immediately. Standard CR2032 cells are available at any supermarket, gas station, or electronics shop worldwide.
The New Battery Is the Only Tool You Need.
No coin slot, no Phillips head, no prying. Press the fresh CR2032 flat against the cap and twist — it comes off with finger pressure alone. Your replacement part doubles as the removal tool.
Full Control from Your Phone
Download the WHEELTOP app to pair, tune, and monitor your drivetrain — all from your phone.
Everything You Need, Right in the App
Install the WHEELTOP app on iOS or Android. Connect over Bluetooth, and you have instant access to gear position, battery level, riding data, firmware updates, and full after-sales support — all in one place.
Live Riding Data
Speed, cadence, heart rate, mileage, and ride time displayed in real time
Battery & Shift Count
See remaining charge and total shift cycles at a glance
OTA Firmware Updates
Push updates wirelessly — no cables or tools needed
Two Riding Modes. One Tap to Switch.
Switch between Standard and Racing mode directly in the app. Each mode is tuned for a different riding style — no tools, no hassle.
Standard Mode
Auto-sleep when idle. Lower power draw, longer battery life. Perfect for long days in the saddle.
Racing Mode
Always-on, maximum responsiveness. Boosted signal power for noise-resistant shifting under pressure.
Pair, Calibrate, Fine-Tune — All in the App
Use the WHEELTOP app to pair your derailleur, run initial position calibration, and micro-adjust each individual gear. No limit screws to guess at — just tap and confirm.
Per-Gear Fine Adjustment
Dial in every sprocket individually. If one gear feels off, adjust it directly in the app without touching the bike — a level of precision that cable systems simply can't match.
TXF vs OX — Lighter for Folding Bikes
Every gram matters on a folding bike. The TXF rear derailleur (Standard Alloy Short Cage) is 57.7g lighter than the OX — a meaningful difference on a platform built around portability.
EDS OX Rear Derailleur
397.5g
MTB / Flat-bar
EDS TXF Rear Derailleur
339.8g
Folding Bike Optimised ✓
Clean Install. No Cables. No Compromise.
The TXF is built around one insight: folding bikes need an electronic groupset that actually fits.
Pick the Cage That Fits Your Wheels
Standard Alloy Short Cage or Carbon Ceramic OSPW — both run on the same electronic platform, so you choose based on wheel size, not compromise.
Zero Cable Routing
No shift cable to thread through a folding frame. No housing. No barrel adjusters to re-tune after folding and unfolding hundreds of times.
1X Single Chainring — Simpler Drivetrain
Single chainring means no front derailleur, no chainline management headaches. Just rear shifts — fast, precise, every time.
Button Shifter on Flat Bars
The OX-derived button shifter mounts cleanly to flat bars with a single bolt. No levers, no bracket arms — minimal footprint, maximum clearance.
EDS TXF Spec Sheet
What's in the Box
×1
EDS TX Electronic Rear Derailleur (Standard Alloy Short Cage or Carbon Ceramic OSPW, per selected variant)
×1
Wireless Button-Style Shifter
×1
Magnetic Charging Cable
Compatibility & Buyer Notes
Please review the following before purchasing to ensure correct fitment.
1X Single Chainring Only
The TXF kit does not include a front derailleur and is not designed for 2X double-chainring setups. For 2X, see the TXR listing.
Carbon Ceramic OSPW — 20″ Wheels or Larger Only
The long-cage OSPW variant needs more ground clearance than sub-20″ folding platforms provide, risking pedal-strike or chain-to-frame contact. If your folding bike runs wheels smaller than 20 inches, choose the Standard Alloy Short Cage instead.
Flat Bar / Button Shifter Mount
The included button-style shifter is designed for flat bars. It is not compatible with drop bar STI-style lever positions.
Requires Standard Derailleur Hanger
Compatible with standard replaceable derailleur hangers. Confirm your folding bike uses a standard hanger before ordering.
WHEELTOP App Required for Setup
Speed count and per-gear positions are configured through the free WHEELTOP app (iOS & Android). Initial pairing takes under 5 minutes.
